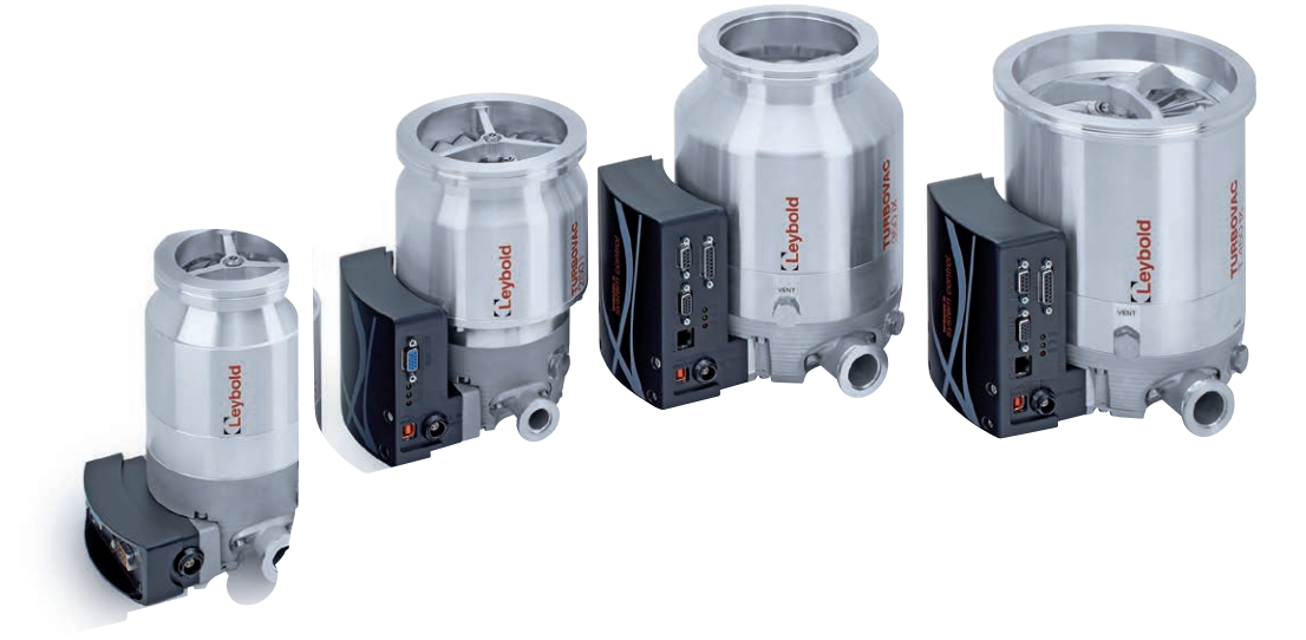

Leybold Vacuum Pump TURBOVAC 350iX DN100ISO-K
Create an account to install this asset package.
Maintenance Plans for Leybold Vacuum Pump Model TURBOVAC 350iX DN100ISO-K
Integrate maintenance plans directly into your work orders in MaintainX.
Pump Startup Check
Switching on
Switch on the power supply.
Did all LEDs come on sequentially?
Enter the maximum starting pressure for the turbomolecular pump.
Switch on the turbomolecular pump via pins 7 and 8 of the socket REMOTE (X1).
Is the turbomolecular pump accelerating?
Is the green LED flashing?
Is the green LED permanently lit indicating normal operation?
Safety Precautions
Bearing Maintenance
5 Maintenance
Determine the location for bearing replacement
Request a quotation for bearing replacement
1 Yearly Air Filter Maintenance
4.1 Media compatibility / purge gas
Verify media compatibility
Check purge gas type
Change the air filters
Pump Cleaning
5.1 Cleaning
Clean the turbomolecular pump of dust with a dry cloth if required
Check the converter for grime (dust, moisture) on the inside
Is there any contamination inside the converter?
Describe any contamination found inside the converter
Contact Leybold Service Department for cleaning if contamination is found
Pump Leak Testing
0.4 Hazards caused by materials and substances
Ensure the forevacuum line is tight
Check for hazardous gases escaping at leaks
Verify that gases being pumped do not react with air or humidity
Perform a leak search after installing the pump
Conduct a leak search after service work on the vacuum system
Verify the pump's integral leak rate is < 1·10-8 mbar·l/s upon delivery
Perform regular leak searches when pumping toxic gases
Parts for Leybold Vacuum Pump TURBOVAC 350iX DN100ISO-K
Access the parts list for your equipment in MaintainX.
Power Supply Turbo.Power Integra Incl. 0.3 M Cable
800100V0003
Cable Turbovac I/Ix - Turbo.Power Integra 1 M
800096V0100
Cable Turbovac I/Ix - Turbo.Power Integra 3 M
800096V0300
Cable Turbovac I/Ix - Turbo.Power Integra 5 M
800096V0500
Power Supply And Control Unit Turbo.Control 300
800100V0001
Power Supply Turbo.Power Integra Incl. 0.3 M Cable
800100V0003
Cable Turbovac I/Ix - Turbo.Power Integra 1 M
800096V0100
Cable Turbovac I/Ix - Turbo.Power Integra 3 M
800096V0300
Cable Turbovac I/Ix - Turbo.Power Integra 5 M
800096V0500
Power Supply And Control Unit Turbo.Control 300
800100V0001
Power Supply Turbo.Power Integra Incl. 0.3 M Cable
800100V0003
Cable Turbovac I/Ix - Turbo.Power Integra 1 M
800096V0100
Cable Turbovac I/Ix - Turbo.Power Integra 3 M
800096V0300
Cable Turbovac I/Ix - Turbo.Power Integra 5 M
800096V0500
Power Supply And Control Unit Turbo.Control 300
