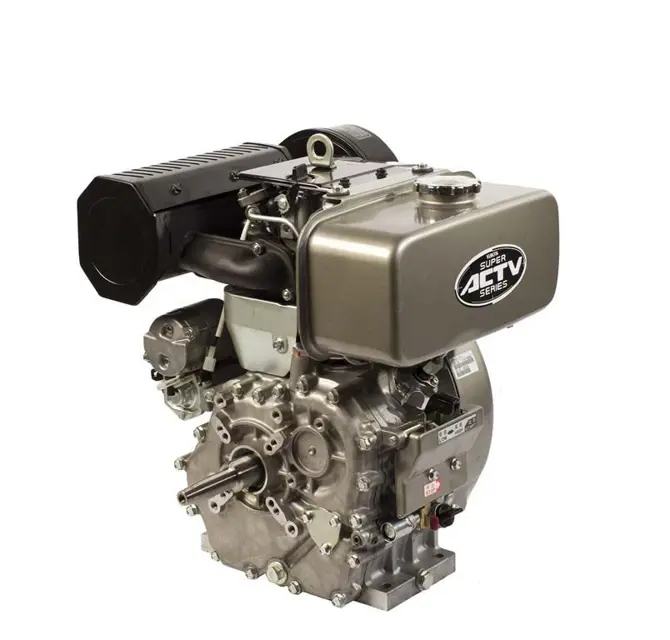

Kubota Diesel Engine OC60

Warning: Always ensure the machine is turned off before starting the cleaning procedure.

Is the work site especially dusty?

If the work site is especially dusty, check and clean the air cleaner every day.

Remove any dust from the air cleaner and wipe the inner surfaces.

Remove dust from the air cleaner element by tapping it gently or by applying compressed air from the inside while rotating the element.

If the element is oily or coated with carbon dust, soak it in a neutral detergent solution for 15 minutes, wash it several times, rinse with fresh water, then allow it to dry.

Replace the element every year or after every sixth cleaning, whichever comes first.

If the element breaks, replace it. Otherwise, the service life of the engine will be shortened.

Change the crank case oil 25 hours after initial operation and every 100 hours thereafter, using the following procedure:

Empty the crankcase by removing the drain plug.

Fill the crankcase up to the specified level with fresh oil.

Sign off on the initial 25 hours diesel engine maintenance

Crankcase oil checked and replenished?

Air cleaner (paper element type) replenished?

Fuel tank checked and replenished?

Rubber hoses and Clamp bands checked?

Sign off on the daily diesel engine maintenance

Always handle the battery correctly to ensure maximum performance.

Daily inspection and maintenance carried out

Battery charged before voltage drop

Fluid level checked and distilled water added if necessary

CAUTION: Do not spoil clothes and skin with battery electolyte. As the battery electolyte is dilute sulfuric acid, it will damage the clothes. Wash away when battery electrolyte sticks to the clothes.

Sign off on the daily battery inspection

Empty the crankcase by removing the drain plug.

Fill the crankcase up to the specified level with fresh oil.

Crankcase oil changed successfully?
