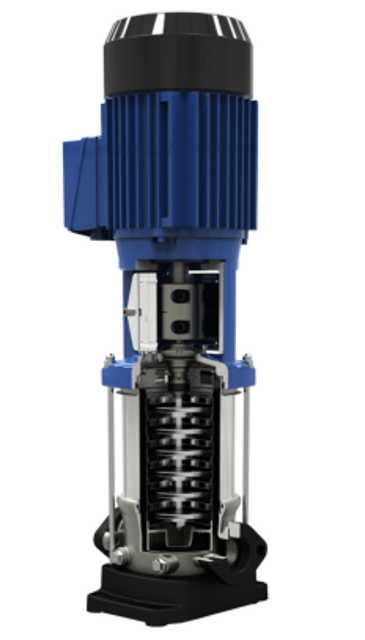

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC V(S)F 60B PN 40

Ensure only qualified personnel perform work on the pump set

Allow the pump set to cool down to ambient temperature

Use suitable transport devices and lifting equipment for heavy components

Observe all safety instructions and information

Follow motor manufacturer's instructions for any work on the motor

Properly shut down the pump set

Close the shut-off elements in suction and discharge line

Wear safety clothing and a protective mask, if required.

Observe all legal regulations on the disposal of fluids posing a health hazard.

Collect and properly dispose of flushing fluid and any residues of the fluid handled.

Has the pump set been neutralised if it handled corrosive or flammable fluids?

Blow anhydrous inert gas through the pump to ensure drying if necessary.

Ensure the pump is not in operation before draining.

Suspend or support the motor to prevent it from tipping over.

Ensure the motor meets the following conditions

Retaining bracket 89-11.03 has been removed (if applicable).

Align the motor on the drive lantern.

Screw in hexagon head bolts 901.02 or 901.04 and washer 554.02 or 554.04.

Insert coupling 862 with pin 560.

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo nuts 920.03 and lift off the drive lantern

Remove mechanical seal 433 and O-rings 412.01

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo hexagon socket head cap screws 914.03

Remove the mechanical seal 433 using tool 969

Use suitable transport devices, lifting equipment and lifting tackle to move heavy assemblies or components.

Reassemble the pump set in accordance with the general rules of sound engineering practice.

Use suitable tools for setting the pump shaft. Consult KSB if necessary.

Reassemble the pump set in accordance with the corresponding general assembly drawing.

Check O-rings for any damage and replace by new O-rings, if required.
