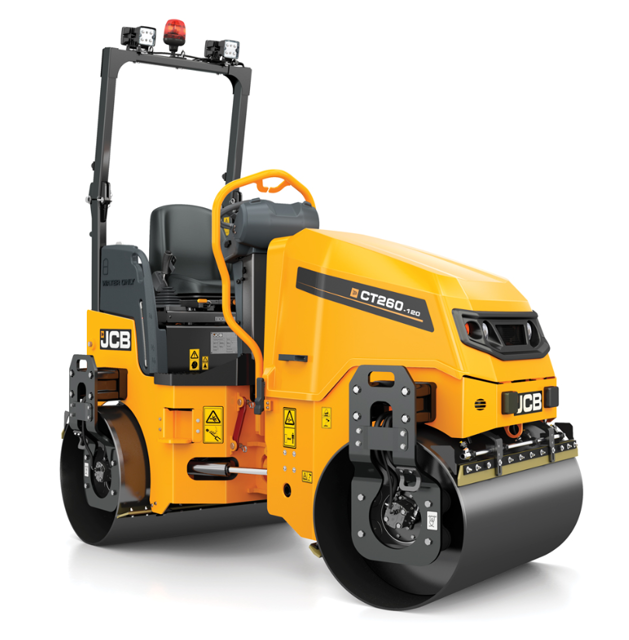

The JCB Tandem Roller CT260 is a robust and efficient compaction machine designed for optimal performance in various construction applications. Known for its durability and reliability, this roller model excels in achieving high-quality surface finishes on asphalt and soil. Ideal for contractors seeking a dependable asset for their fleet.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Tandem Roller CT260

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Tandem Roller CT260

Create an account to install this asset package.

Maintenance Plans for JCB Tandem Roller Model CT260

Integrate maintenance plans directly into your work orders in MaintainX.

Hydraulic System Discharge

1. Park the machine on firm level ground.

2. Stop the engine.

3. Turn the ignition to the off position.

4. Remove the starter key.

5. Wait for the specified time to dissipate any residual hydraulic pressure.

Duration: 30 s;

Run this procedure

2000 Hourly or 2 Yearly Tandem Roller Maintenance

Coolant System Drain and Fill

Oil Filler and Dipstick O-rings Change

Oil Replace

Oil Reservoir Clean;

Run this procedure

Scraper Check

Smooth Drum Scraper

The scrapers are designed for use when rolling asphalt and in conjunction with the sprinkler system.

If earth is being compacted the scrapers should be released from the drum.

1. Make the machine safe.

Refer to: Maintenance Positions (Page 87).

2. Check the correct distance between the drum and the scraper.

3. If necessary, loosen the fasteners on the scraper and set to the correct distance.

Refer to: General (Page 92).

4. Tighten the fasteners to the correct torque value.

Run this procedure

Battery Disconnect

WARNING Keep metal watch straps and any metal fasteners on your clothes, clear of the positive (+) battery terminal. Such items can short between the terminal and nearby metal work. If it happens you can get burned.

CAUTION The machine is negatively earthed. Always connect the negative pole of the battery to earth.

When connecting the battery, connect the earth (-) lead last.

When disconnecting the battery, disconnect the earth (-) lead first.

CAUTION Understand the electrical circuit before connecting or disconnecting an electrical component. A wrong connection can cause injury and/or damage.

Notice: Do not disconnect the battery while the engine is running, otherwise the electrical circuits may be damaged.

1. Make the machine safe.

Refer to: Maintenance Positions (Page 87).

2. Get access to the batteries.

Run this procedure

Hydraulic Oil Replacement

Notice: Ensure that dirt etc. does not enter the hydraulic system during this job. Hydraulic fluid at system pressure can injure you. Relieve the system pressure before changing the Hydraulic filter element. Drain the hydraulic tank when the oil is warm. More dirt is removed from the hydraulic system with warm oil than with cold.

Machine made safe

Filler cap (breather), drain plug and the surface of the hydraulic oil reservoir cleaned

Filler cap removed

Container of suitable size placed below the drain plug on the left hand side of the front chassis

Drain plug removed and oil drained

Drain plug installed

Sign off on the hydraulic oil replacement

Run this procedure
