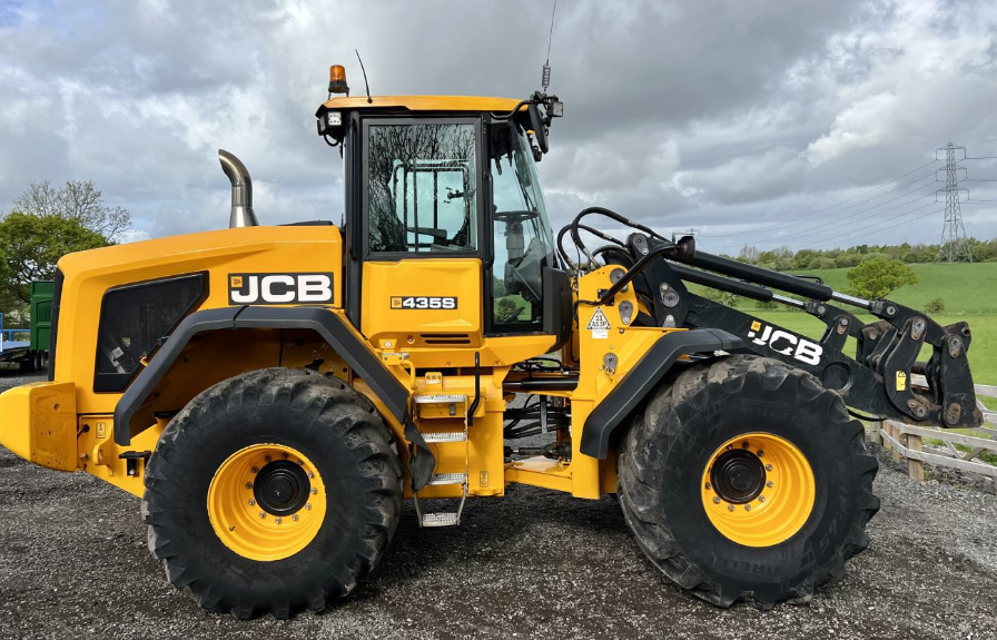

JCB Loader 435S

Need answers fast?
Explore the manual using AI.

JCB Loader 435S
JCB Loader 435S

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Loader 435S

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

JCB Loader 435S

JCB Loader 435S

Create an account to install this asset package.

Maintenance Plans for JCB Loader Model 435S

Integrate maintenance plans directly into your work orders in MaintainX.

Lift Arm Lowered

Check mark

1. If necessary, empty the shovel.

Check mark

2. Make sure that the machine is parked correctly in the straight-ahead position on solid, level ground.

Check mark

3. Apply the park brake.

Check mark

4. Lower the lift arm and put the attachment flat on the ground.

Check mark

5. Stop the engine.

Check mark

6. Remove the ignition key.

Check mark

7. Put chocks on both sides of all the wheels.

Check mark

8. Remove the battery isolation key. Refer to (PIL 33-03).

Check mark

9. Install the articulation lock. Refer to (PIL 06-27).

Run this procedureArrow right

Attachment Disengage

Check mark

Park the machine on solid, level ground

Check mark

Engage the park brake and put the transmission in neutral

Check mark

If necessary, disconnect the hydraulic hoses

Check mark

Push and hold the Quickhitch isolator switch

Check mark

Disengage the locking pins:Refer to Figure 13

Check mark

Proportional lever control with an auxiliary button: Push the auxiliary 1 button until the locking pins are retracted

Check mark

Refer to loader control decal in the cab for exact location of button as different loader control levers are available

Check mark

Multi lever control option: Push the lever until the locking pins are retracted

Check mark

Release the Quickhitch isolator switch

Run this procedureArrow right

Attachment Engage

Check mark

1. Align the machine square with the attachment.

Check mark

2. Lower the lift arm until the pivot shaft is below the level of the hooks on the attachment. Refer to Figure 17.

Check mark

3. Drive the machine slowly forward, stop when the pivot shaft just touches the attachment.

Check mark

4. Engage the park brake and put the transmission in neutral.

Check mark

5. Raise the lift arms and engage the pivot shaft into the hooks. Stop the movement as soon as the pivot shaft is engaged.

Check mark

6. Engage the attachment:

Check mark

6.1. Proportional lever control: Move the lever to the left and tilt the Quickhitch fully back.

Check mark

6.2. Refer to loader control decal in the cab for exact location of button as differ2ent loader control levers are available.

Check mark

6.3. Multi lever control option: Move the lever to the rear and tilt the Quickhitch fully back.

Run this procedureArrow right

Hydraulic Pressure Removal

Check mark

1. Make the machine safe with the lift arm lowered. Refer to (PIL 01-03).

Check mark

2. Install the articulation strut. Refer to (PIL 06-27).

Check mark

3. Isolate the battery from the electrical circuit. Refer to (PIL 33-03).

Check mark

4. Use suitable lifting equipment to support the quickhitch.

Check mark

5. Disconnect the hydraulic hoses.

Check mark

6. Remove the bolts and the pivot pins from both sides of the quickhitch.

Check mark

7. Remove the quickhitch from the lift arms.

Check mark

8. Check the condition of the bushes and seals.

Check mark

9. Replace the bushes and seals if they are damaged or worn.

Run this procedureArrow right

Lift Arm Installation

Check mark

Warning: Lift arm support devices must be used for non-routine maintenance operations beneath a raised lift arm.

Check mark

Is the machine parked correctly in the straight-ahead position on solid, level ground?

Check mark

Is the park brake engaged and the transmission in neutral?

Check mark

Is the lift arm raised sufficiently to install the maintenance struts?

Check mark

Is the engine run at idle for a few minutes to let the turbocharger cool?

Check mark

Is the engine stopped?

Check mark

Is the ignition key removed?

Check mark

Are chocks put on both sides of all the wheels?

Check mark

Is the articulation lock installed?

Run this procedureArrow right
