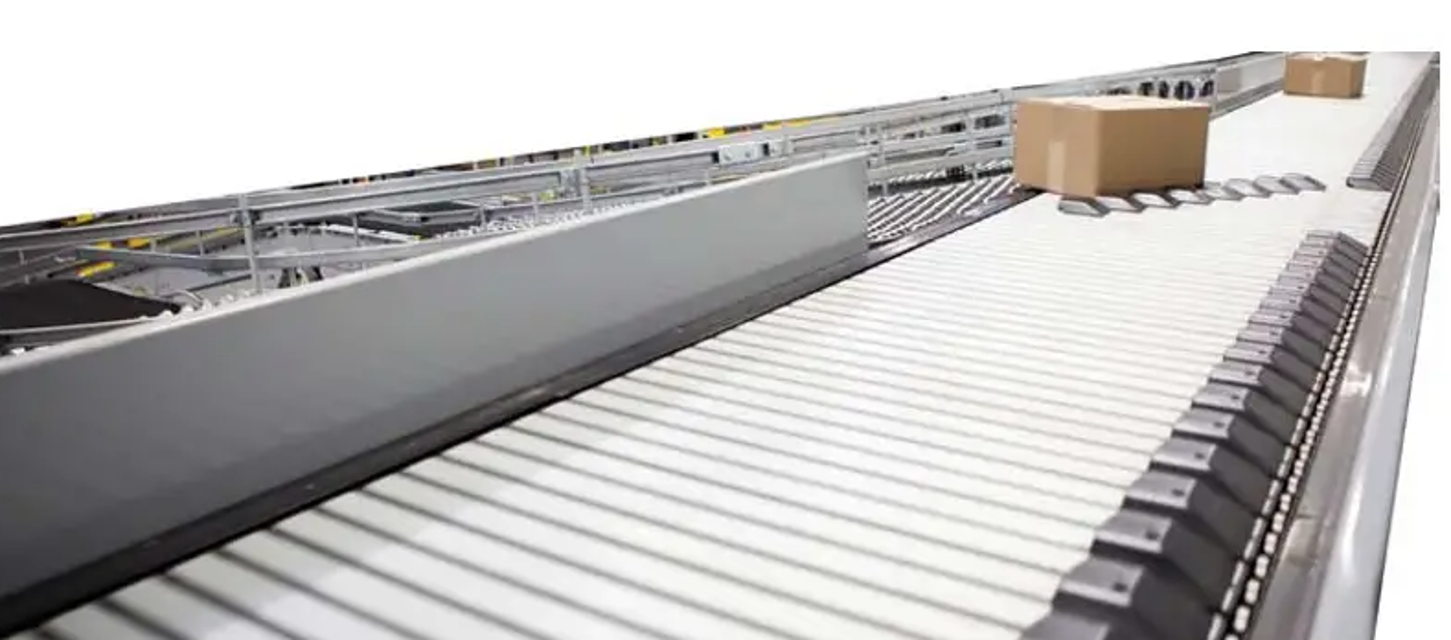

Hytrol High Speed Sortation Conveyor ProSort 431

Warning: Ensure all ProSort sections are installed and aligned before proceeding.

Manually pivot the switch back and forth between the non-divert and divert position checking for a free and smooth pivoting movement.

Describe any switch binding issues and remedies applied.

Switch adjustment was necessary.

After turning on air pressure, each divert switch is in, or moves to, the home (non-divert) position.

Sign off on the divert switch check.

Type of oil used for chain lubrication

Reducer manufacturer recommendations

Oiler brush comes in contact with the chain

Sign off on the conveyor lubrication

NOTE: All electric divert servo motors are paired with the associated drives at the factory. Connecting motors to the wrong drive may have an adverse effect on the divert operation and could result in physical damage to the sorter. Always connect the drives to the factory paired motors to prevent damage.

Diverts are fully in either the home or diverted position

Diverts are in the home position after removing the enable signal to the Smart Prox and flagging the Smart Prox to trigger a move operation

Each time diverts are powered on, the diverter moves slowly until it finds the home position

The “All Systems Go” signal is on before running the sorter

The Smart Prox is set properly. The face of the prox should be set just out of the shoe pin guide path in the switch guide

Sign off on the Electric Divert Switch Checklist

Check Alignment with Chain Guards
