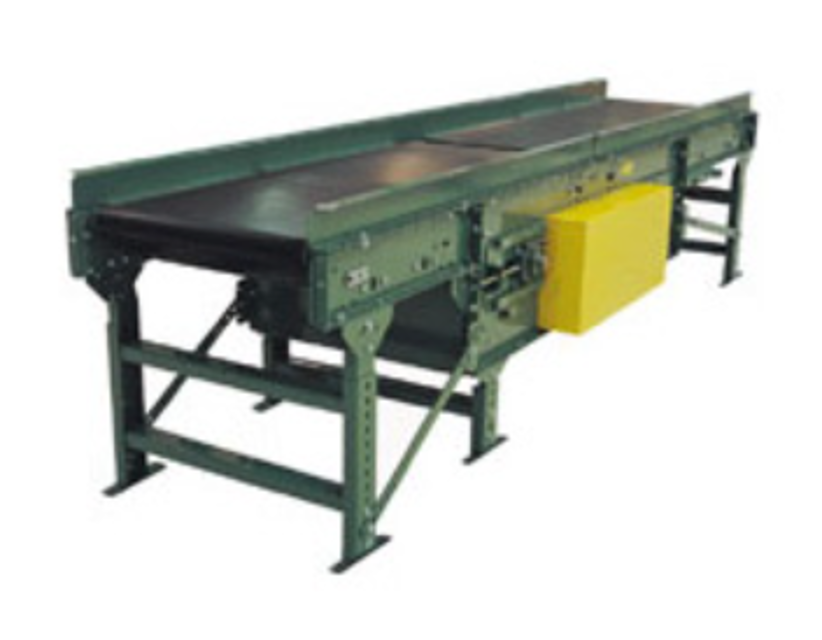

Hytrol Belt Conveyor GAPPER-O

Create an account to install this asset package.

Maintenance Plans for Hytrol Belt Conveyor Model GAPPER-O

Integrate maintenance plans directly into your work orders in MaintainX.

2080 Hourly / 6 Monthy Belt Conveyor Lubrication

Warning: This procedure requires trained personnel with PPE!

Is the drive chain pre-lubricated from the manufacturer?

If not, report the issue to the maintenance team and stop the procedure

Choose the type of lubricant used

Enter the operating hours of the conveyor belt

Is the lubrication sufficient?

Issues found during the inspection

Sign off on the belt conveyor lubrication

Run this procedure

3 Monthly Belt Conveyor Check

Reducer

Check Oi Level

Bearings (Pulleys & Rollers)

Check Mounting Bolts

Drive Chain

Check Tersion

Check for Wear

Sprockets

Check for Wear

Run this procedure

Belt Replacement

Warning: Ensure the machine is powered off before starting the procedure.

Loosen belt by loosening the take-up bolt weldment on the spring take-up until belt is no longer in tension.

Remove tail pulleys, drive pulley and slider pan.

Upload a photo of the new belt installed as shown in Figure 6A.

Slide belt over tail pulleys. Belt is installed on top of Auto Belt Tracker and over Take-up pulley.

Put slider pan in place.

Reinstall drive pulley being careful belt is in proper position.

Tighten hardware.

Adjust belt tension by adjusting the take-up bolt weldment on the spring take-up.

Run this procedure

1 Weekly Belt Conveyor Check

Motor temperature check

Drive chain lubrication

Run this procedure

Drive Chain Alignment and Tension Check

Warning: This procedure requires trained personnel with PPE!

Chain guard removed

Sprocket alignment checked

Set screws loosened and adjusted

Motor base bolts loosened

Enter the desired chain tension

Mounting bolts re-tightened

Chain lubricated

Chain guard replaced without interfering with drive

Run this procedure

Parts for Hytrol Belt Conveyor GAPPER-O

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Bearing - Cast Iron, 4-Bolt, 1-11/16"BOR

010.204501

3/8-16 X 1'LG Hex Head Cap Screw, Zinc Plated

040.303

5/8-11 X 1-3/4'LG Hex Head Cap Screw, Zinc Plated

040.501

1/4-20 X 3/4"LG Hex Head Cap Screw, Zinc Plated

040.100

Side Channel - (Specify OAL)R

P-03362-(OAL)R

Bearing - Cast Iron, 4-Bolt, 1-11/16"BOR

010.204501

3/8-16 X 1'LG Hex Head Cap Screw, Zinc Plated

040.303

5/8-11 X 1-3/4'LG Hex Head Cap Screw, Zinc Plated

040.501

1/4-20 X 3/4"LG Hex Head Cap Screw, Zinc Plated

040.100

Side Channel - (Specify OAL)R

P-03362-(OAL)R

Bearing - Cast Iron, 4-Bolt, 1-11/16"BOR

010.204501

3/8-16 X 1'LG Hex Head Cap Screw, Zinc Plated

040.303

5/8-11 X 1-3/4'LG Hex Head Cap Screw, Zinc Plated

040.501

1/4-20 X 3/4"LG Hex Head Cap Screw, Zinc Plated

040.100

Side Channel - (Specify OAL)R

P-03362-(OAL)R
