Hytrol Belt Accumulation Conveyor RBE24EZ

Warning: Incorrect assembly of the motor plug to the control card will result in a damaged motor and card.

Motor connector plugged into the 8-pin header correctly?

+24VDC Input, DC (-) Terminals providing power to the control board and motor?

EZLogic® Controller Connector accepting a drive/no drive signal?

Motor Run Terminal providing a “run” signal to the motor control board?

Motor Direction Terminal providing a “reverse” signal to the motor control board?

Motor Running Output Terminal providing a “motor running” signal?

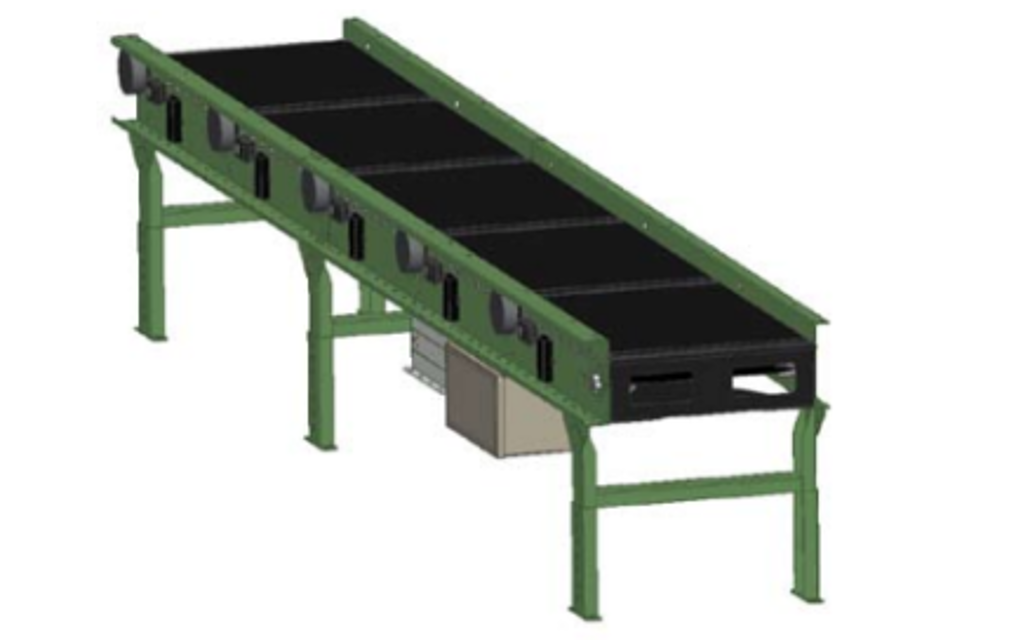

The E24TM family of conveyors is equipped with a 24 volt DC power suppy unit for providing power to the drive card and motor combination. Each power supply provided is a high efficiency DC power supply in a sealed industrial enclosure. (Figure 6B)

The various wiring connections, adjustments and settings, and electrical specifications of the power supply unit are described in this section.

Input power connections are made inside the enclosure. Wiring harness power connections are made to connector on the outside of the enclosure.

AC power for the power supply unit is connected directly to the disconnect switch, and the ground wire is connected to the grounding terminal block. (Figure 6C and 6D)

The dual voltage single phase input powered units will automatically adjust to the 115 VAC or the 230 VAC input power.

Connect the wiring harness to a connector on the side of the enclosure.
