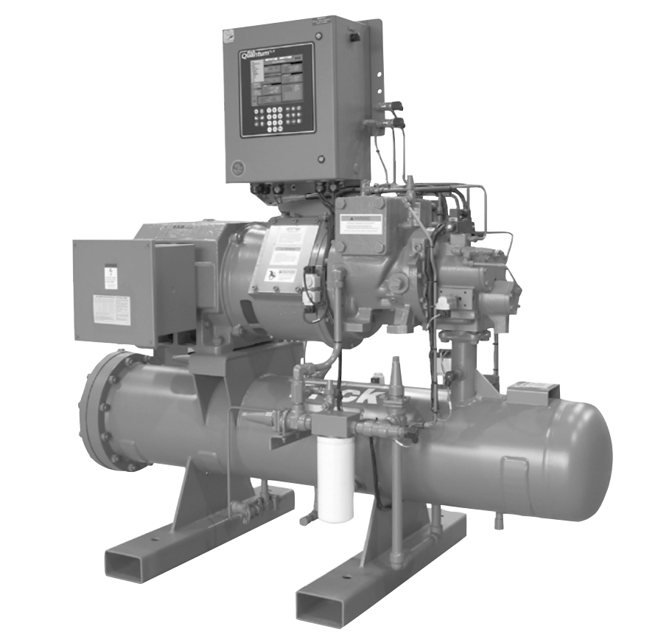

Frick Compressor Unit RXF-19

Pull and clean suction strainer after 24 hours operation.

Is the suction strainer excessively dirty?

Repeat cleaning every 24 hours until system is clean if strainer is excessively dirty.

Follow the Maintenance Schedule if strainer is not excessively dirty.

Perform oil analysis every 6 months

Conduct initial oil check at 1000 hours of operation

Participate in a regular, periodic oil analysis program to maintain oil and system integrity

Maintenance Schedule / Vibration Analysis

Record the vibration reading from the designated location

Is the vibration level within the acceptable range?

Describe any unusual vibration patterns or noises observed

Identify potential influences on vibration readings

Was the vibration reading compared to the baseline reference?

Provide detailed evaluation of the vibration readings

Check Coupling at 200 hours of operation, then annually regardless of operating hours

Check bolts, shim packs, center inserts, keys, and all bolt torques

Check for excess vibration and skip frequencies when operating conditions change

Torque all terminals in the processor and starter panel as per specification
