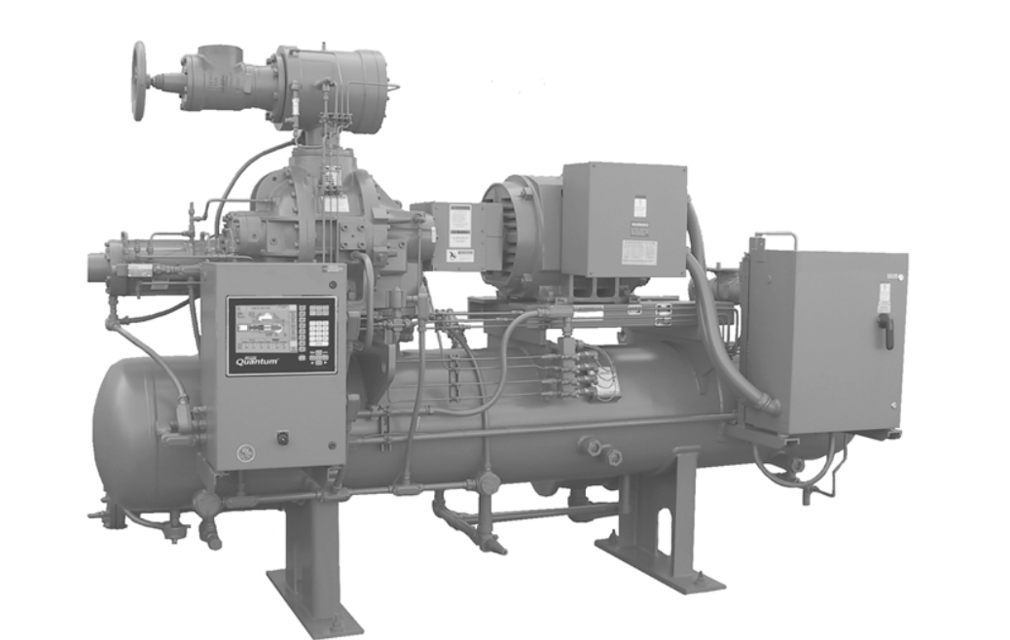

Frick Compressor Unit RWB II-134

Replace Coalescers at specified hours of operation

Change the oil when changing the coalescer filter element(s)

Change cartridges in oil filters

Remove and clean applicable strainer elements

Ensure only Frick filter elements are used to avoid warranty issues

Refer to the Coalescer Filter Element(s) procedure in the manual for detailed replacement steps

Maintenance Schedule / Vibration Analysis

Check vibration analysis at 200 hours of operation

Schedule vibration analysis every 6 months thereafter

Have vibration levels increased since the last check?

Take vibration readings from the same places and at the same load percentage

Use start-up vibration readings as baseline reference

Evaluate and record vibration readings carefully

Is there any influence from other equipment operating nearby?

Check oil analysis at 1000 hours of operation

Participate in a regular, periodic oil analysis program

Are Frick filter elements used?

Conduct oil analysis every 6 months

Perform initial check at 1000 hours of operation

Participate in a regular, periodic oil analysis program to maintain oil and system integrity

Check Suction & Discharge Flange Bolts at specified hours

Verify tightness of bolts on suction flange

Verify tightness of bolts on discharge flange

Select RWB II model for torque specification

Enter torque value for discharge flange (ft-lb)

Enter torque value for suction flange (ft-lb)
