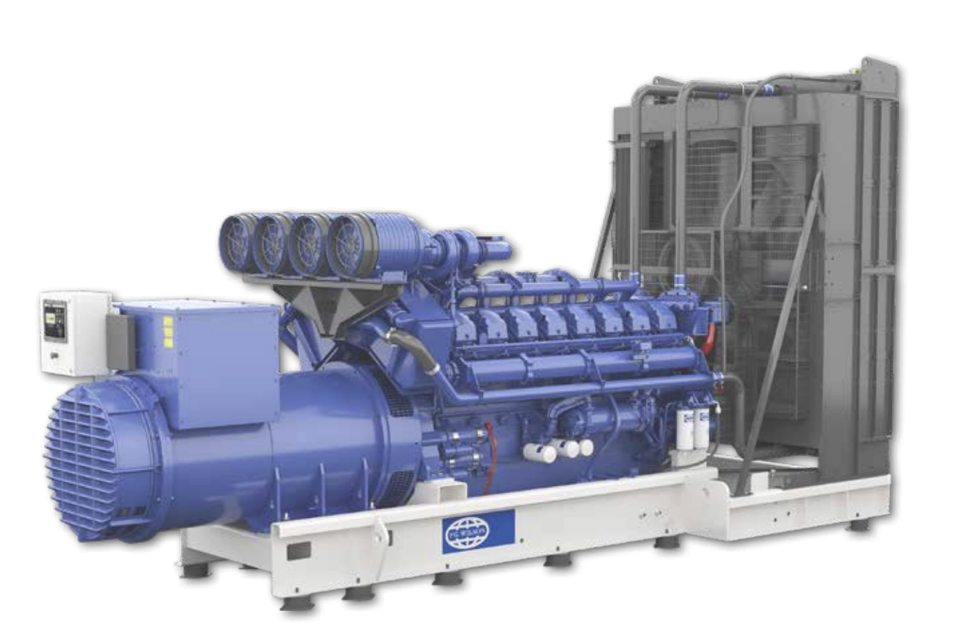

FG Wilson Generator Set P1500-1

Inspect battery condition using a torch if necessary

Are there any severe dents or leaks on the battery?

Ensure all load is removed before disconnecting the battery

Disconnect the negative cable first

Remove the hold-down clamp or strap securing the battery base

Ensure the battery area is clean and dry

Check that any vent caps are tight if fitted

Select the cleaning solution used for the battery case

Clean the battery case with the selected solution

Thoroughly rinse the battery case with clean water

Battery Connections Maintenance

Clean the terminals and cable clamps with fine grade sandpaper until shiny

Select the method used to drain the fuel tank

Drain the water and sediment from the fuel tank

Drain the outer bund area by hand pump through the rear access socket

Dispose of any removed fluid properly

Ensure that the engine is stopped before any servicing or repair is performed

Ensure that the area around the cap on the Diesel Exhaust Fluid (DEF) tank is clean

Press the tabs to release the filter screen from DEF tank neck adapter

Remove the filter screen from DEF tank neck adapter

Ensure generator set is not running on load

Inspect for any visible leaks or damages

Set generator load to at least 50%
