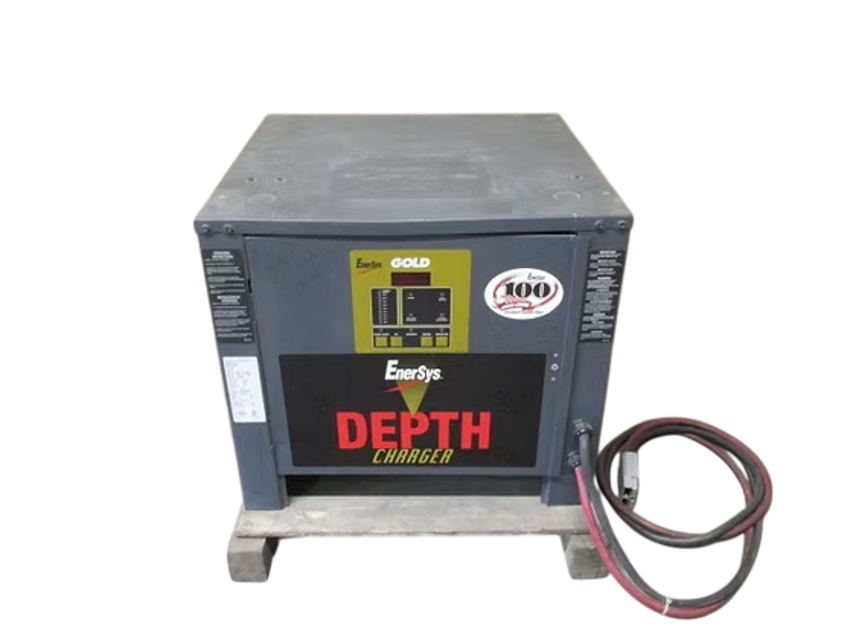

ENERSYS SCR Transformer Type Battery Charger GTX

Return all replaced components to your service center.

Reconnect all leads exactly as they were removed.

Replace any heat-shrink tubing if any old tubing was removed.

No scratches, gouges, or burrs allowed in the SCR/Diode Block contact area.

No oil, dirt, paint, adhesive or other foreign substances are permitted in the contact area.

Disconnect the battery and AC power before testing the diode.

You will be testing the diode to see if it is shorted.

Disconnect the three phase input wires to the SCR/Diode Blocks.

Use an analog meter set to its X1 scale, or use a DVM set to its diode scale.

Connect the meter's negative lead to the input connection of the SCR/Diode Block.

Connect the meter's positive lead to the - bussbar.

If you are using an analog meter, it should read close to 0 ohms.

If you are using a DVM, it should read a .7V drop on the diode scale.

Reverse the wires on the meter.

Warning: Disconnect the battery before testing the control transformer.

You will be testing the wiring of the control transformer for continuity.

Lugs 1 through 5 are located at the front of the control transformer, with lug 1 at the top.

Lugs 6 through 10 are located in the back, with lug 10 at the top.

Measure across the lugs specified in the ID Board.

Does what you measure correspond with what is listed in the table?

If not, replace the control transformer.

Sign off on the control transformer test

Warning: Disconnect the battery and AC power before starting the test.

Mounting wire is sound--properly screwed on and not broken

Snubber assembly is not burned, broken, or smoking

To test the snubber assembly, disconnect a mounting wire and check for no continuity.

Meter reads less than 200k ohms

Replace snubber assembly if meter reads less than 200k ohms

Sign off on the snubber assembly test

Return all replaced components to your service center.

Reconnect all leads exactly as they were removed.

Replace any heat-shrink tubing if any old tubing was removed.

Use the wiring diagrams in the back of this manual to help identify wires connected to the transformer.

Remove the AC input wires from the 3 terminal input blocks.
