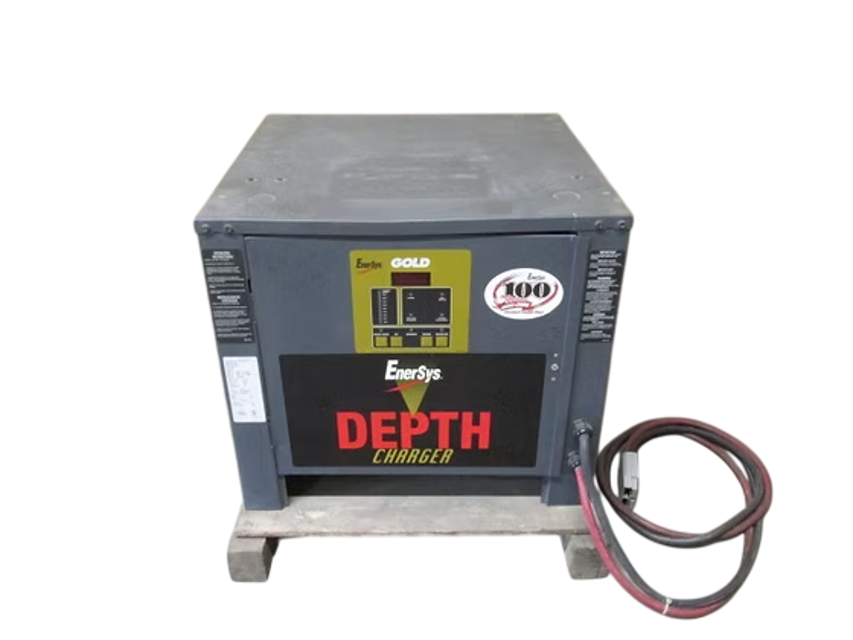

ENERSYS SCR Transformer Type Battery Charger FGTX

Return all replaced components to your service center.

The following sections explain how to replace each component. After replacing a component, be sure to:

1. Reconnect all leads exactly as they were removed,

2. Replace any heat-shrink tubing if any old tubing was removed,

Please follow these steps before removing or replacing any component:

Return all replaced components to your service center.

Reconnect all leads exactly as they were removed.

Replace any heat-shrink tubing if any old tubing was removed.

No scratches, gouges, or burrs allowed in the SCR/Diode Block contact area.

No oil, dirt, paint, adhesive or other foreign substances are permitted in the contact area.

Please follow these steps before testing the fuses:

You will be testing each fuse to see whether there is continuity across it.

1. Using an ohmmeter, set to its x1 scale, test each fuse.

2. If a fuse tests as an open circuit (infinity), replace it.

3. If there is continuity across the fuse (less than 1 ohm), it is working properly.

Please follow these steps before testing the contactor:

On Connector J3, on the PC board,

2. The contactor should pull in.

3. If it does not, check the wiring from Connector J3 to the fuse and to the contactor.

Return all replaced components to your service center.

The following sections explain how to replace each component. After replacing a component, be sure to:

1. Reconnect all leads exactly as they were removed,

2. Replace any heat-shrink tubing if any old tubing was removed,

Please follow these steps before removing or replacing any component:
