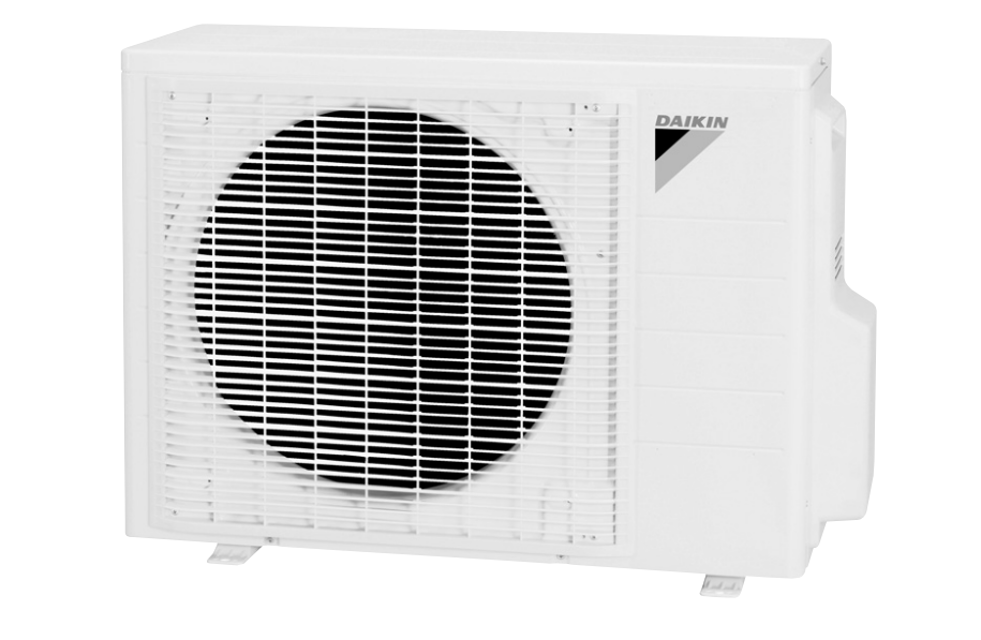

Daikin Outdoor Unit Cooling Only Air Conditioner RM50KV1V

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Apply nitrogen replacement when heating up the brazed part.

Ensure refrigerant gas is empty in the circuit.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the 2 terminals (red, white) from the compressor capacitor (C1R).

Pull out the terminal (5) from the magnetic contactor (K1M).

Release the fan motor lead wire from the groove.

Make note of the wiring pattern before removing.

Remove the screw of the fan motor fixing plate.

Remove the fan motor fixing plate.

Remove the nut and remove the outdoor fan.

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure room ventilation if refrigerant gas leaks during work.

Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.

Collect all refrigerant gas to prevent atmospheric discharge.

Restore piping using non-oxidation brazing.

Ensure refrigerant gas is empty in the circuit before starting work.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Open the fuse cover and remove the fuse (F1U).

Pull out the remaining terminal from the compressor capacitor (C1R).

Remove the 2 screws (M4×8) and remove the capacitor fixing band.

Remove the compressor capacitor (C1R).

Compressor lead wire identification

Pull out the remaining terminals from the magnetic contactor (K1M).

Remove the 2 screws (M4×16) and remove the magnetic contactor (K1M).

Pull out the terminals from the terminal board (X1M).

Wait for 10 minutes after turning off all power supplies

Check if the model has a sound blanket (top)

Remove the sound blanket (body)
