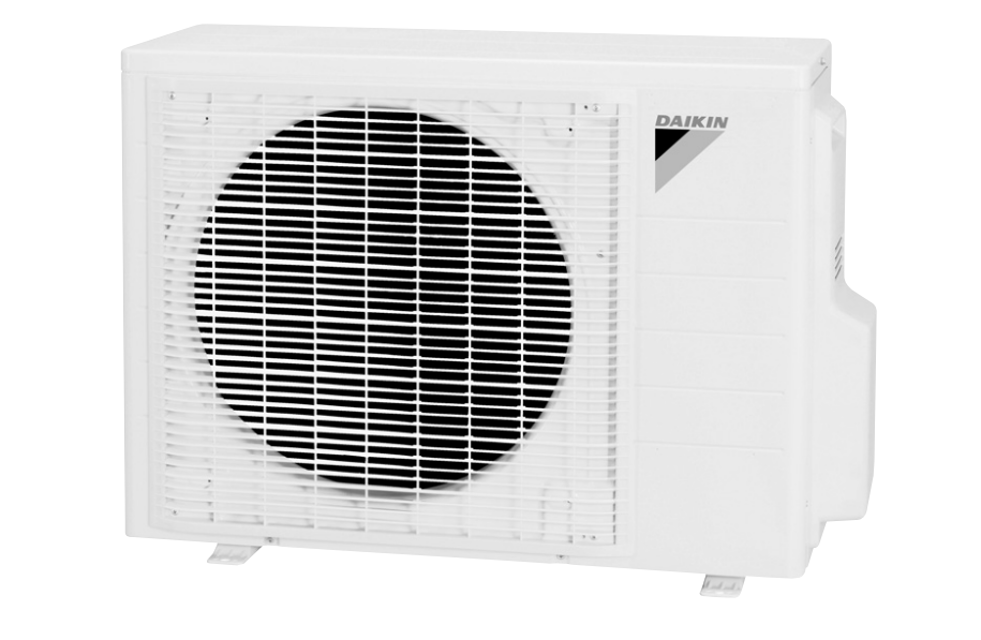

Daikin Outdoor Unit Cooling Only Air Conditioner RN50JV1G

Ensure all power supplies are turned off

Wait for 10 minutes after turning off power supplies

Remove the 4 screws from the top panel

Remove the 7 screws from the front panel

Unfasten the hooks of the front panel

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Open the fuse cover and remove the fuse (F1U).

Pull out the remaining terminal from the compressor capacitor (C1R).

Remove the 2 screws (M4×8) and remove the capacitor fixing band.

Remove the compressor capacitor (C1R).

Compressor Lead Wire Identification

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the 2 terminals (red, white) from the compressor capacitor (C1R).

Pull out the terminal (5) from the magnetic contactor (K1M).

Release the fan motor lead wire from the groove.

Note the wiring pattern before removing.

Remove the screw of the fan motor fixing plate.

Remove the fan motor fixing plate.

Remove the nut and remove the outdoor fan.

Unfasten the 2 hooks and release the fan motor lead wire.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Apply nitrogen replacement when heating up the brazed part.

Ensure refrigerant gas is empty in the circuit.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Wait for 10 minutes after turning off all power supplies

Check if the model has a sound blanket (top)

Remove the sound blanket (body)

Inspect the piping ports on the sound blanket for tears
