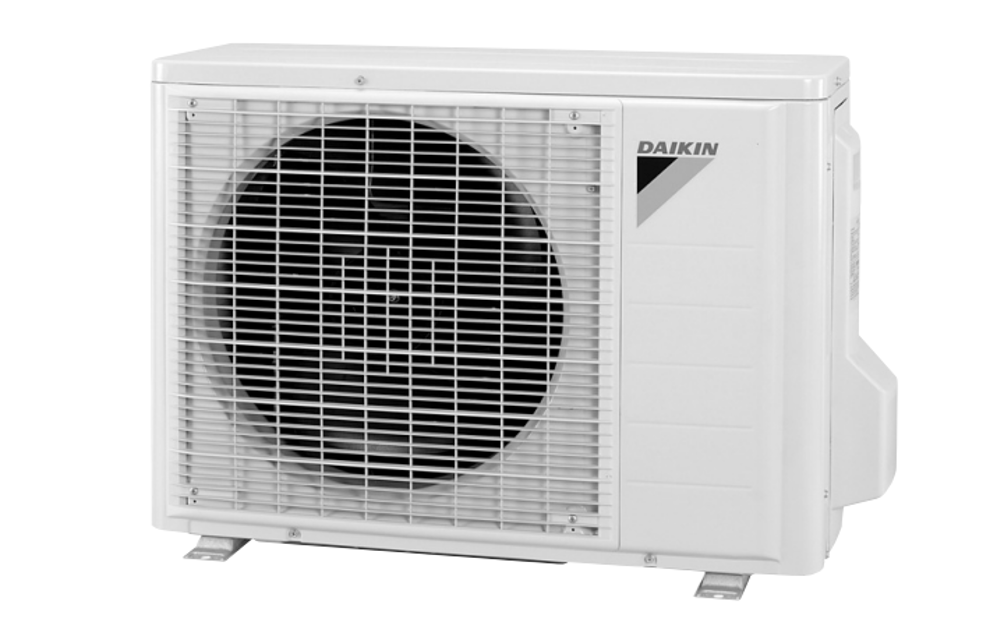

Daikin Outdoor Unit Cooling Only Air Conditioner RM15NV2S

Have you waited for 10 minutes after turning off all power supplies?

Remove the electrical components

Remove the sound blanket (top) carefully to avoid tearing the piping ports.

Untie the 2 strings and remove the sound blanket (body).

Wait for 10 minutes or more after turning off all power supplies before starting disassembly.

Ensure no contact with heated pipes and parts from the gas brazing machine.

Is the room ventilated in case of refrigerant gas leakage?

Prepare wet cloth to extinguish fire immediately in case refrigerant oil catches fire.

Environmental and Safety Cautions

Collect all refrigerant gas to prevent atmospheric discharge.

Restore piping using non-oxidation brazing.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw and remove the stop valve cover.

Remove the 3 screws and remove the top panel.

Remove the 4 screws and remove the discharge grille.

Remove the 8 screws of the front panel.

Unfasten the 4 hooks and remove the front panel.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating up the brazed part.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.
