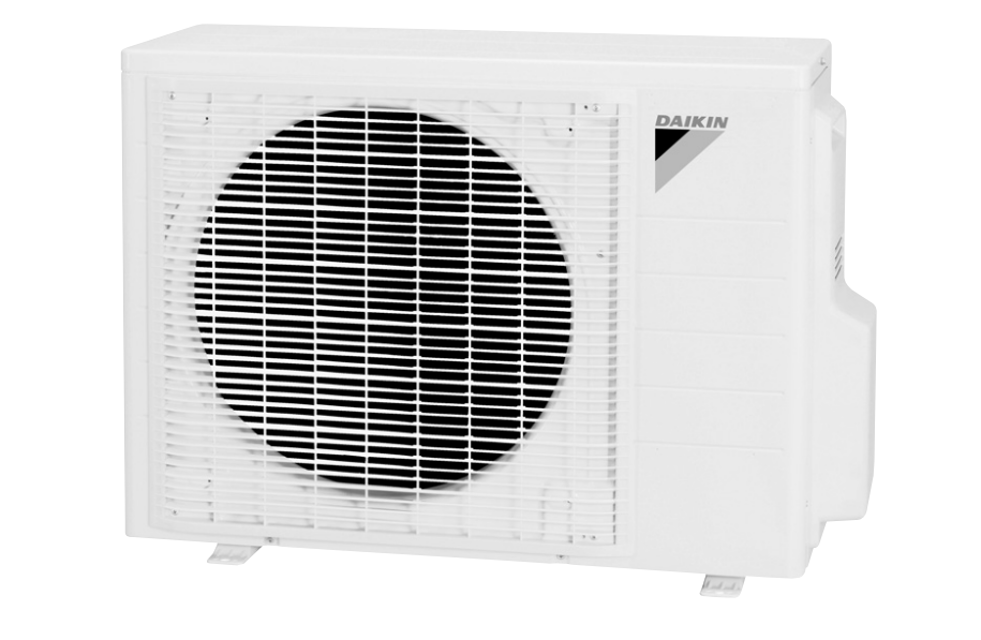

Daikin Outdoor Unit Cooling Only Air Conditioner RNE60MV1

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the 2 terminals (red, white) from the compressor capacitor (C1R).

Pull out the terminal (5) from the magnetic contactor (K1M).

Release the fan motor lead wire from the groove.

Make note of the wiring pattern before removing.

Remove the screw of the fan motor fixing plate.

Remove the fan motor fixing plate.

Remove the nut and remove the outdoor fan.

Unfasten the 2 hooks and release the fan motor lead wire.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure not to get burnt with pipes and other parts heated by the gas brazing machine.

Ventilate the room if refrigerant gas leaks during work.

Prepare wet cloth to extinguish fire immediately in case refrigerant oil catches fire.

Do not discharge refrigerant gas into the atmosphere. Collect all refrigerant gas.

Restore the piping by non-oxidation brazing.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating up the brazed part.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 4 screws and remove the top panel.

Remove the 7 screws of the front panel.

Lift the front panel and unfasten the 3 hooks of the left side and 2 hooks of the right side.

Remove the 4 screws and remove the discharge grille.

Has it been 10 minutes since all power supplies were turned off?

Remove the sound blanket (body)
