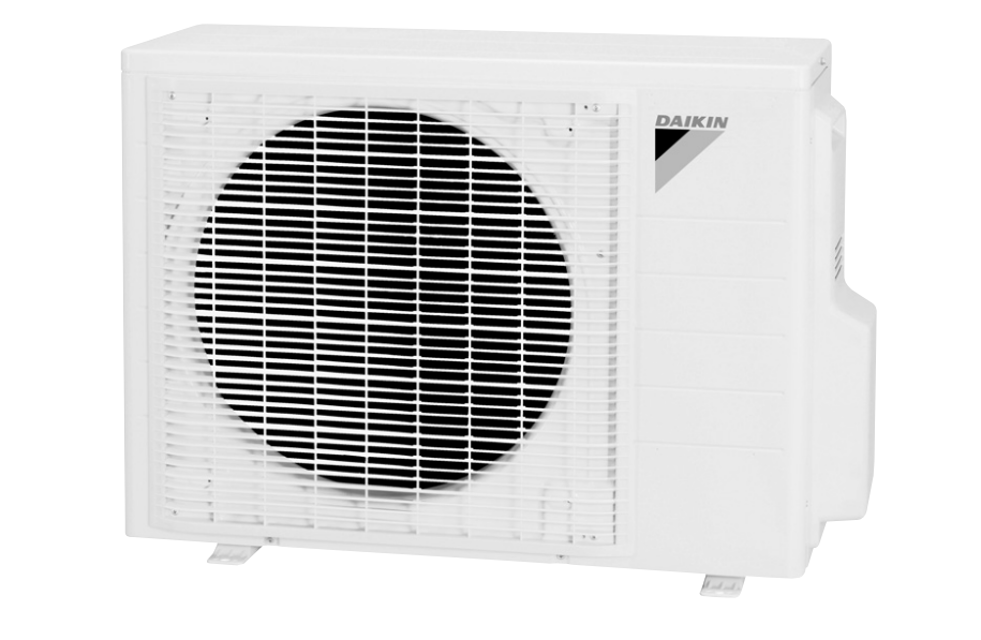

Daikin Outdoor Unit Cooling Only Air Conditioner RNE60MV14

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating up the brazed part.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Wait for 10 minutes after turning off all power supplies before starting disassembly

Check that all power supplies are turned off

Check if the model has a sound blanket (top)

Remove the sound blanket (body) carefully to avoid tearing the piping ports

Wait for 10 minutes or more after turning off all power supplies before starting disassembly.

Ensure no contact with heated pipes and parts from the gas brazing machine.

Is the area ventilated in case of refrigerant gas leakage?

Prepare wet cloth to extinguish fire immediately in case refrigerant oil catches fire.

Environmental and Handling Cautions

Collect all refrigerant gas to prevent atmospheric discharge.

Restore piping using non-oxidation brazing.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the 2 terminals (red, white) from the compressor capacitor (C1R).

Pull out the terminal (5) from the magnetic contactor (K1M).

Release the fan motor lead wire from the groove.

Make note of the wiring pattern before removing.

Remove the screw of the fan motor fixing plate.

Remove the fan motor fixing plate.

Remove the nut and remove the outdoor fan.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 4 screws from the top panel.

Remove the 7 screws from the front panel.

Unfasten the hooks of the front panel
