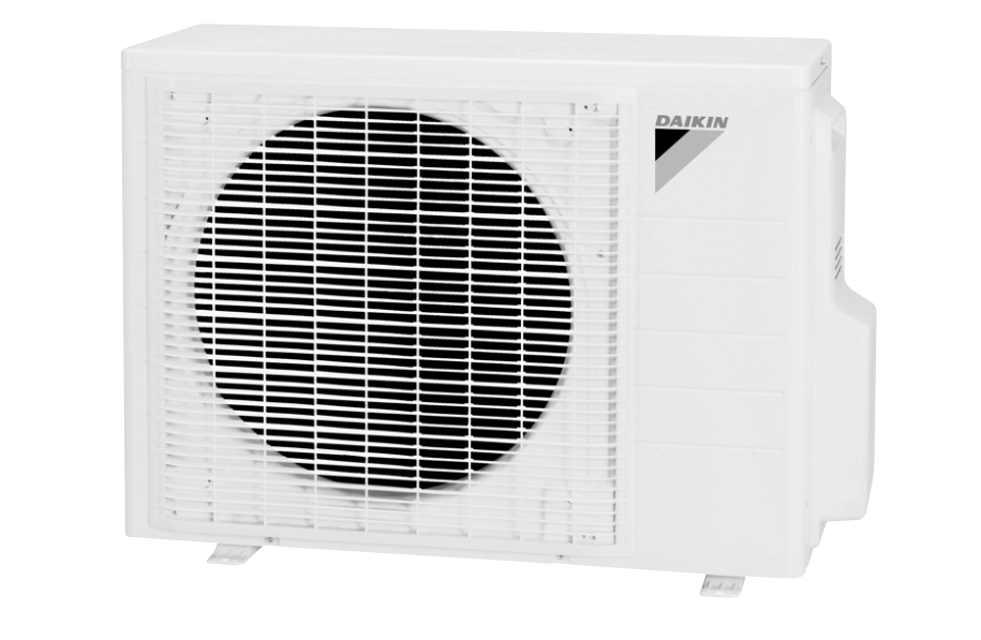

Daikin Outdoor Unit Cooling Only Air Conditioner RNE60LV1

Ensure all power supplies are turned off

Wait for 10 minutes after turning off power supplies

Remove the 4 screws from the top panel

Remove the 7 screws from the front panel

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure no burns occur from heated pipes and parts.

Ventilate the room if refrigerant gas leaks during work.

Prepare wet cloth to extinguish fire in case refrigerant oil catches fire.

Environmental and Safety Cautions

Ensure refrigerant gas is not discharged into the atmosphere.

Restore piping by non-oxidation brazing.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Open the fuse cover and remove the fuse (F1U).

Pull out the remaining terminal from the compressor capacitor (C1R).

Remove the 2 screws (M4×8) and remove the capacitor fixing band.

Remove the compressor capacitor (C1R).

Compressor Lead Wire Identification

Identify the compressor lead wires

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (body)

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the 2 terminals (red, white) from the compressor capacitor (C1R).

Pull out the terminal (5) from the magnetic contactor (K1M).

Release the fan motor lead wire from the groove.

Make note of the wiring pattern before removing.

Remove the screw of the fan motor fixing plate.

Remove the fan motor fixing plate.

Remove the nut and remove the outdoor fan.

Unfasten the 2 hooks and release the fan motor lead wire.
