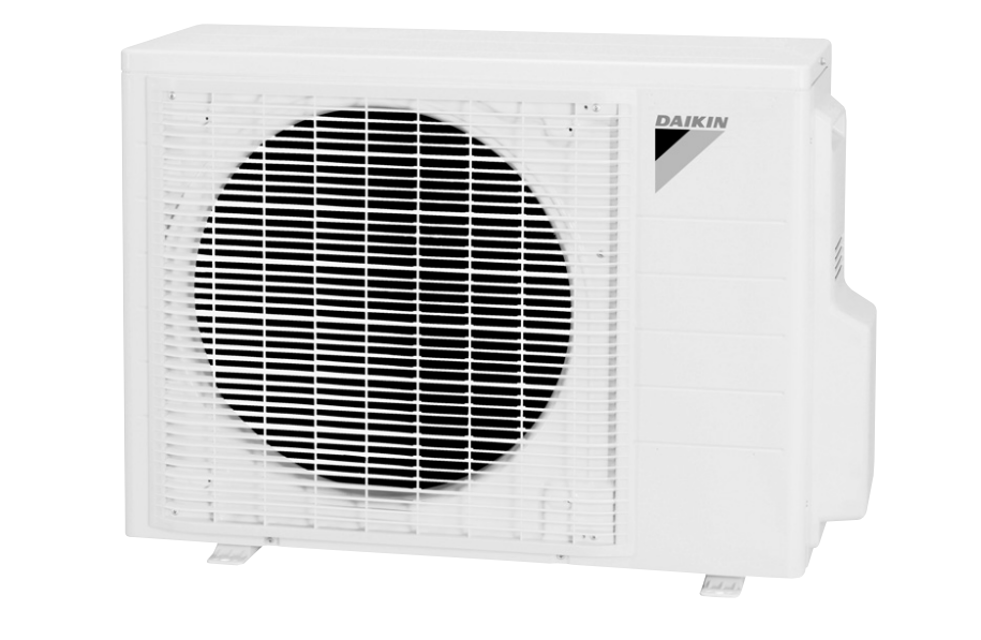

Daikin Outdoor Unit Cooling Only Air Conditioner RM50JV14

Warning: Wait for 10 minutes after turning off all power supplies before disassembling.

Remove the 4 screws from the top panel

Remove the 7 screws from the front panel

Unfasten the 3 hooks on the left side of the front panel

Unfasten the 2 hooks on the right side of the front panel

Wait for 10 minutes or more after turning off all power supplies before starting disassembly.

Ensure no contact with heated pipes and parts from the gas brazing machine.

Is the area ventilated in case of refrigerant gas leakage?

Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.

Environmental and Safety Cautions

Collect all refrigerant gas to prevent atmospheric discharge.

Restore piping using non-oxidation brazing.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Open the fuse cover and remove the fuse (F1U).

Pull out the remaining terminal from the compressor capacitor (C1R).

Remove the 2 screws (M4×8) and remove the capacitor fixing band.

Remove the compressor capacitor (C1R).

Compressor Lead Wire Identification

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to avoid atmospheric discharge.

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating up the brazed part.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Wait for 10 minutes after turning off all power supplies

Check if the model has a sound blanket (top)

Remove the sound blanket (body)
