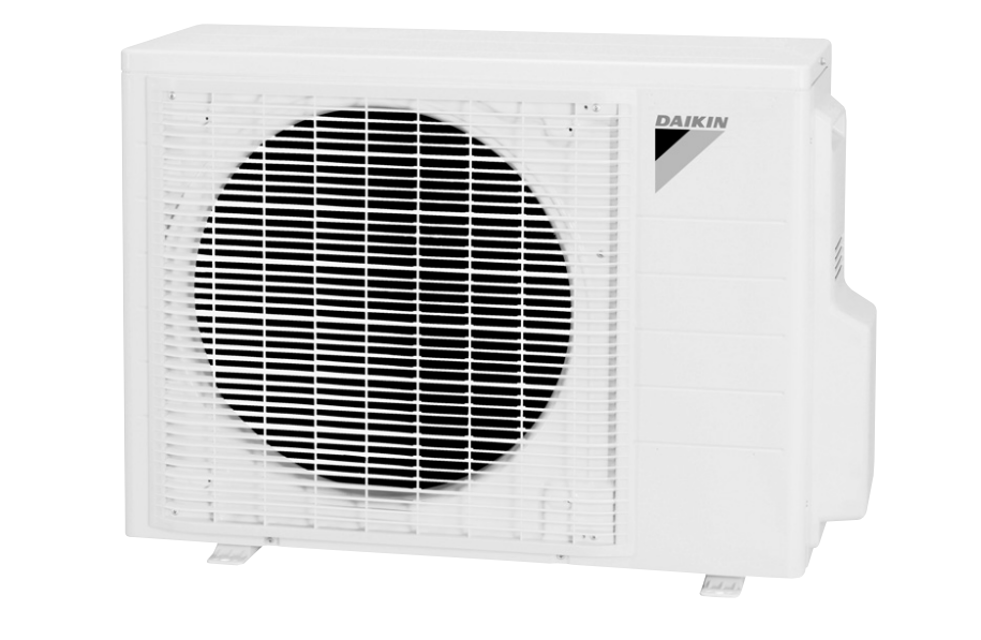

Daikin Outdoor Unit Cooling Only Air Conditioner ARM18MV2S
Create an account to install this asset package.
Maintenance Plans for Daikin Outdoor Unit Cooling Only Air Conditioner Model ARM18MV2S
Integrate maintenance plans directly into your work orders in MaintainX.
Compressor ASSY Removal
Safety Precautions
Wait for 10 minutes after turning off all power supplies before starting disassembly.
Ensure room ventilation if refrigerant gas leaks during work.
Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.
Collect all refrigerant gas to prevent atmospheric discharge.
Preparation
Ensure refrigerant gas is empty in the circuit.
Apply nitrogen replacement when heating brazed parts.
Provide protective sheet or steel plate to shield peripheries from brazing flame.
Outdoor Fan / Fan Motor Removal
Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.
Pull out the 2 terminals (red, white) from the compressor capacitor (C1R).
Pull out the terminal (5) from the magnetic contactor (K1M).
Release the fan motor lead wire from the groove.
Make note of the wiring pattern before removing.
Remove the screw of the fan motor fixing plate.
Remove the fan motor fixing plate.
Remove the nut and remove the outdoor fan.
Remove the nut (Nut size: M6).
Capillary Tube Removal
Safety Precautions
Wait for 10 minutes or more after turning off all power supplies before disassembling work.
Ensure proper ventilation if refrigerant gas leaks during work.
Collect all refrigerant gas to avoid atmospheric discharge.
Preparation
Ensure refrigerant gas is empty in the circuit.
Apply nitrogen replacement when heating up the brazed part.
Provide a protective sheet or steel plate to shield peripheries from brazing flame.
Capillary Tube Removal
Sound Blanket Removal
Wait for 10 minutes after turning off all power supplies
Remove the sound blanket (top)
Remove the sound blanket (body)
Electrical Component Removal
Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.
Fuse Removal
Open the fuse cover and remove the fuse (F1U).
Compressor Capacitor Removal
Pull out the remaining terminal from the compressor capacitor (C1R).
Remove the 2 screws (M4×8) and remove the capacitor fixing band.
Remove the compressor capacitor (C1R).
Compressor Lead Wire Identification
Identify compressor lead wires
Unlock
