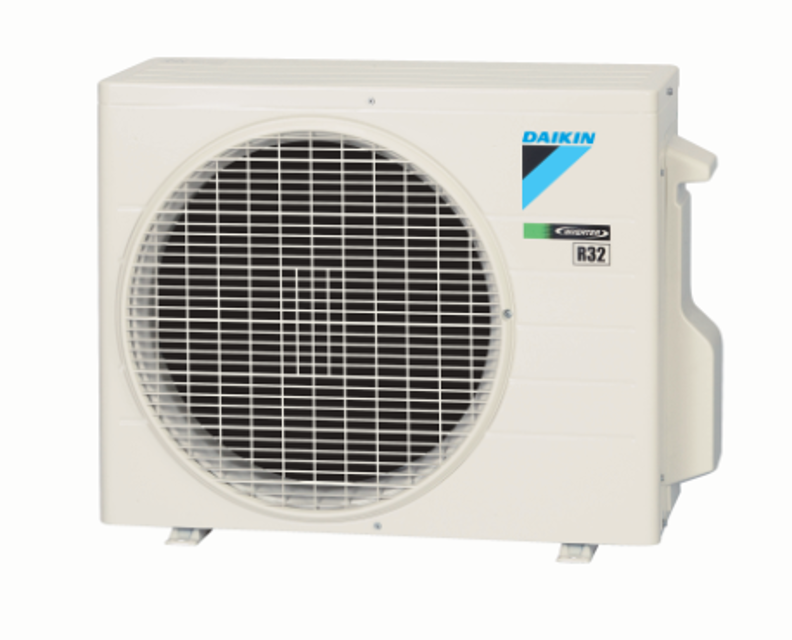

Daikin Outdoor Heat Pump RXM35QVMA

Ensure all power supplies are turned off

Wait for 10 minutes after turning off power supplies

Remove the 4 screws from the top panel

Remove the 5 screws from the front panel

Lift up the left side of the front panel

Ensure all power supplies are turned off for at least 10 minutes before starting disassembly.

Remove the screw of the stop valve cover.

Slide the stop valve cover downward and remove it.

Remove the screw of the shield plate.

Lift up the shield plate and unfasten the 2 hooks to remove it.

Disconnect the connectors from the terminal board

Ensure all power supplies are turned off

Wait for 10 minutes after turning off power supplies

Remove the screws of the partition plate

Lift up the partition plate and remove it

Fit the hook on the bottom frame when reassembling

Electronic Expansion Valve Coil Removal

Remove the electronic expansion valve coil

Ensure all power supplies are turned off

Wait for 10 minutes after turning off power supplies

Detach the fastener and pull out the sound blanket (outer)

Pull out the sound blanket (inner)

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Thermistor and Suction Grille Removal

Remove the outdoor temperature thermistor from the suction grille or protection net.

Remove the 3 screws, and then the suction grille.

For models with protection net, lift up the protection net and remove it.

Slide the left side of the suction grille to the right and unfasten the 2 left hooks.

Unfasten the 3 right side hooks and remove the suction grille.

Terminal Board and Wire Fixture Removal
