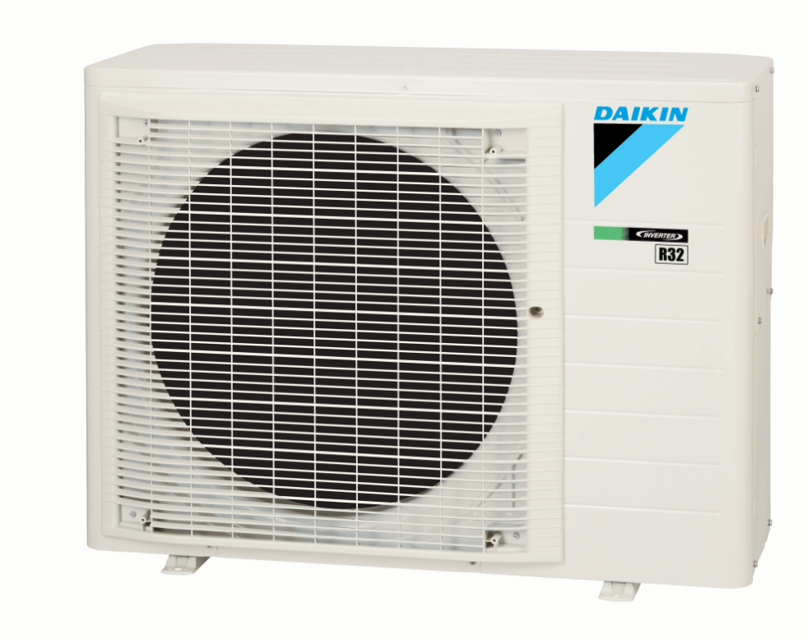

Daikin Cooling-Only Outdoor Unit RKM46QVMA

Wait for 10 minutes after turning off all power supplies before starting disassembly

Pull out the clamps and push the projections from the back of the electrical box

Remove the earth / ground screw

Disconnect the terminals for power supply

Remove the 4 screws of the terminal board mounting plate ASSY

Slide up and remove the terminal board mounting plate ASSY

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure no burns from heated pipes and parts.

Is the room ventilated in case of refrigerant gas leak?

Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.

Collect all refrigerant gas to avoid atmospheric discharge.

Restore piping using non-oxidation brazing.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 6 screws, and then the top panel.

Remove the 3 screws of the terminal cover.

Unfasten the 2 hooks and remove the terminal cover.

Pull the partition plate (2) forward, then slide to the right to remove it.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the electrical box cover

Disconnect the connector [S70] and release the fan motor lead wire from the slit

Remove the nut, and then the outdoor fan

Remove the 2 screws, and then the fan motor fixing frame

Remove the fan motor fixing frame

Wait for 10 minutes or more after turning off all power supplies before starting disassembly

Ensure the following steps are completed

Remove the sound blankets in the following order

Does the model have an additional sound blanket (inner top)?

If applicable, remove the additional sound blanket (inner top)
