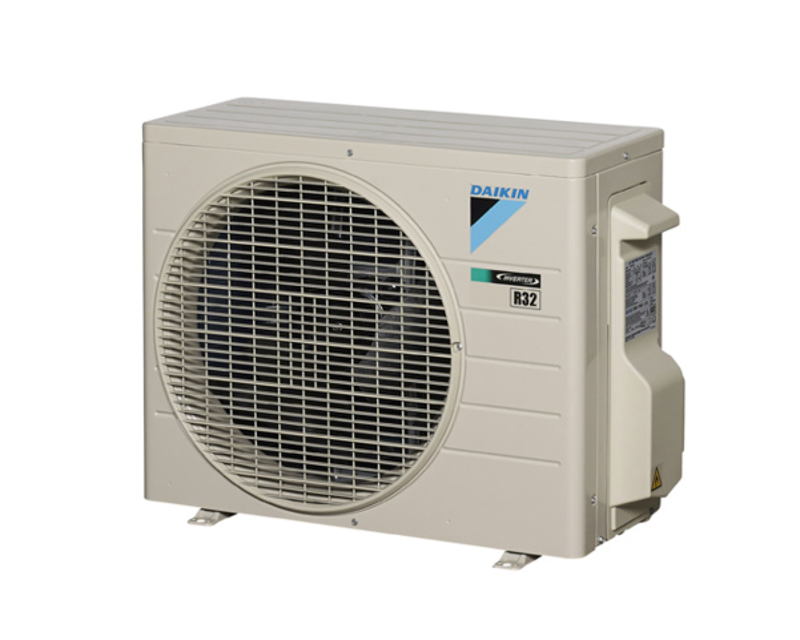

Daikin Outdoor Heat Pump RXM60QVMA

Ensure all power supplies are turned off for at least 10 minutes before starting disassembly

Pull out the clamps and push the projections from the back of the electrical box

Remove the earth / ground screw

Disconnect the terminals for power supply

Remove the 4 screws of the terminal board mounting plate ASSY

Slide up and remove the terminal board mounting plate ASSY

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 6 screws, and then the top panel.

Remove the 3 screws of the terminal cover.

Unfasten the 2 hooks and remove the terminal cover.

Pull the partition plate (2) forward, then slide to the right to remove it.

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure pipes and parts heated by the gas brazing machine are cool to avoid burns.

Is the room ventilated in case of refrigerant gas leakage?

Collect all refrigerant gas to prevent atmospheric discharge.

Restore piping using non-oxidation brazing.

Wrap the four way valve with wet cloth and provide water to keep it below 120°C (248°F).

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 2 screws from the partition plate.

Lift up the partition plate and remove it.

Remove the sound blankets in the following order

Carefully remove the sound blanket to avoid tearing piping ports.

Wait for 10 minutes after turning off all power supplies before starting disassembly work.

Remove the electrical box cover.

Disconnect the connector [S70] and release the fan motor lead wire from the slit.

Remove the nut (M8 size) and then the outdoor fan.

Note alignment of the fan rotor mark with the D-cut section of the motor shaft for reassembly.
