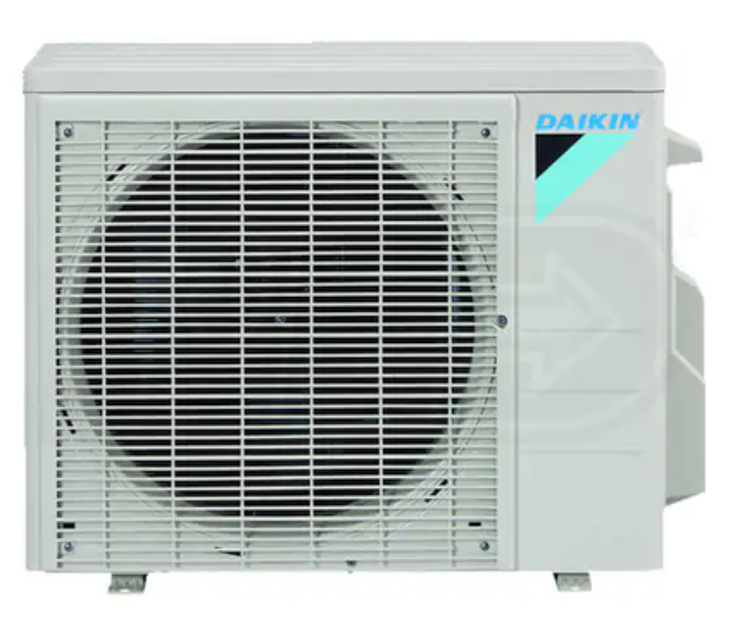

Daikin Outdoor Heat Pump RXL15QMVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXL15QMVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Outdoor Fan / Fan Motor Removal

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Drip Proof Cover Removal

Remove the drip proof cover

Terminal Cover Removal

Remove the 2 screws of the terminal cover

Open the terminal cover and pull down to unfasten the 2 hooks

Remove the terminal cover

Fan Motor Lead Wire Disconnection

Disconnect the connector [S70] (fan motor)

Run this procedure

Electrical Box Removal

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Disconnection and Removal

Remove the 7 screws on the terminal board and disconnect the connecting wire and power supply wire.

Loosen the 2 nuts of the conduits and remove the connecting wire and power supply wire.

Remove the 2 screws and remove the conduit mounting plate.

Connector and Clamp Disconnection

Remove the 2 screws.

Disconnect the connector [S80] and pull out the clamp (Hole No.1).

Connect the connectors in the following order when reassembling.

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Terminal Board and Grounding

Remove the screw of the terminal board.

Remove the earth / ground screw.

Clamp and Relay Harness

Pull out the clamp (1) and cut the clamp (2).

Remove the earth / ground screw.

Cut the clamp (1) (Hole No.5), pull out the clamp (2) (Hole No.12), and release the relay harness from the hook.

Mounting Plate and PCB

Run this procedure

Electronic Expansion Valve / Four Way Valve Removal

Safety Precautions

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Ensure pipes and other parts heated by the gas brazing machine are cool to avoid burns.

Is the area ventilated in case of refrigerant gas leakage?

Collect all refrigerant gas to prevent atmospheric discharge.

Preparation

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating up the brazed part.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Run this procedure

Thermistor ASSY / Partition Plate Removal

Pre-removal Safety Check

Wait for 10 minutes after turning off all power supplies before starting disassembly

Right Side Panel Removal

Remove the screw of the stop valve cover

Slide the stop valve cover downward and remove it

Ensure the 3 hooks are fitted when reassembling the stop valve cover

Remove the 4 screws of the right side panel

Unfasten the 4 hooks and remove the right side panel

Ensure the rear hook is fitted when reassembling the right side panel

Run this procedure
