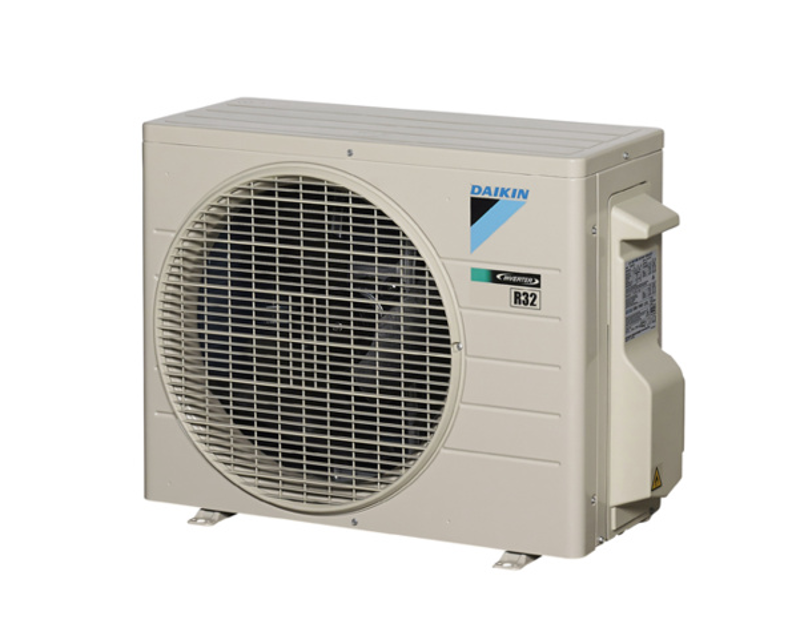

Daikin Outdoor Heat Pump RXV71QVMV

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 3 screws, and then the wire fixture.

Remove the 7 screws on the terminal board and disconnect the connecting wire and power supply wire.

Disconnect the connector [S20] and pull out the clamp.

Disconnect the connector [S80], pull out the clamp (1) and cut the clamp (2).

Disconnect the connector [S40].

Disconnect the relay connector for compressor and pull out the clamp.

Open the sound blanket (top) and detach the discharge pipe thermistor.

Wait for 10 minutes after turning off all power supplies before disassembling work.

Ensure no burns from heated pipes and parts.

Is the room ventilated if refrigerant gas leaks?

Prepare wet cloth to extinguish fire immediately.

Environmental and Safety Cautions

Do not discharge refrigerant gas into the atmosphere.

Restore piping by non-oxidation brazing.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 6 screws, and then the top panel.

Remove the 3 screws of the terminal cover.

Unfasten the 2 hooks and remove the terminal cover.

Pull the partition plate (2) forward, then slide to the right to remove it.

Wait for 10 minutes after turning off all power supplies before starting disassembly

Pull out the clamps and push the projections from the back of the electrical box

Remove the earth / ground screw

Disconnect the terminals for power supply

Remove the 4 screws of the terminal board mounting plate ASSY

Slide up and remove the terminal board mounting plate ASSY

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the electrical box cover.

Disconnect the connector [S70] and release the fan motor lead wire from the slit.

Remove the nut, and then the outdoor fan.

Note alignment of the fan rotor mark with the D-cut section of the motor shaft for reassembly.
