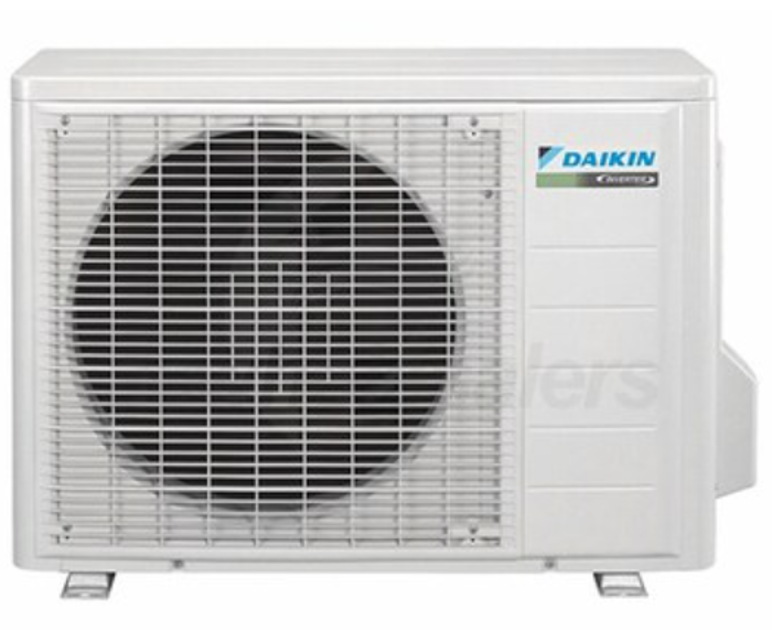

Daikin Outdoor Heat Pump RX18QMVJU

Daikin Outdoor Heat Pump RX18QMVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RX18QMVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Outer Panel Removal

Check mark

Safety Precaution

Check mark

Ensure all power supplies are turned off and wait for 10 minutes before starting disassembly

Check mark

Top Panel Removal

Check mark

Remove the 6 screws and remove the top panel

Check mark

Front Panel Removal

Check mark

Remove the 8 screws of the front panel

Check mark

Slide the fan motor fixing frame to the left and unfasten the 2 hooks

Check mark

Unfasten the 2 hooks on the right side

Check mark

Remove the front panel

Run this procedureArrow right

PCB Removal

Check mark

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Check mark

Terminal Board and Grounding

Check mark

Remove the screw of the terminal board.

Check mark

Remove the earth / ground screw.

Check mark

Clamp and Relay Harness

Check mark

Pull out the clamp (1) and cut the clamp (2).

Check mark

Remove the earth / ground screw.

Check mark

Cut the clamp (1) (Hole No.5), pull out the clamp (2) (Hole No.12), and release the relay harness from the hook.

Check mark

Mounting Plate and PCB

Run this procedureArrow right

Sound Blanket Removal

Check mark

Pre-removal Safety Check

Check mark

Has the power supply been turned off for at least 10 minutes?

Check mark

Sound Blanket Removal

Check mark

Remove the sound blanket (back)

Check mark

Remove the sound blanket (top)

Check mark

Open and pull up the sound blanket (outer)

Check mark

Remove the sound blanket (inner)

Check mark

Sound Blanket Reassembly Order

Check mark

Fit the sound blankets in the correct order

Run this procedureArrow right

Electronic Expansion Valve / Four Way Valve Removal

Check mark

Safety Precautions

Check mark

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Ensure pipes and other parts heated by the gas brazing machine are cool to avoid burns.

Check mark

Is the room ventilated in case of refrigerant gas leakage?

Check mark

Collect all refrigerant gas to prevent atmospheric discharge.

Check mark

Preparation

Check mark

Ensure refrigerant gas is empty in the circuit.

Check mark

Apply nitrogen replacement when heating up the brazed part.

Check mark

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Run this procedureArrow right

Electrical Box Removal

Check mark

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Check mark

Disconnection and Removal

Check mark

Remove the 7 screws on the terminal board and disconnect the connecting wire and power supply wire.

Check mark

Loosen the 2 nuts of the conduits and remove the connecting wire and power supply wire.

Check mark

Remove the 2 screws and remove the conduit mounting plate.

Check mark

Remove the 2 screws.

Check mark

Disconnect the connector [S80] and pull out the clamp (Hole No.1).

Check mark

Disconnect the connector [S20] and pull out the clamp (Hole No.11).

Check mark

Pull out the clamp (Hole No.16) and disconnect the connector [S40].

Run this procedureArrow right
