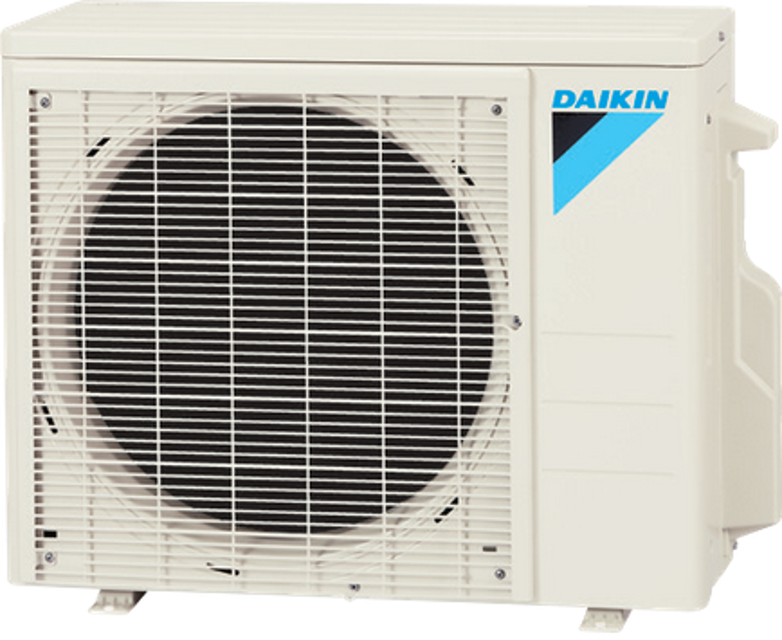

Daikin Outdoor Heat Pump RX24RMVJU

Has the power supply been turned off for at least 10 minutes?

Remove the sound blanket (back)

Open and pull up the sound blanket (outer)

Remove the sound blanket (inner)

Fit the sound blankets in the correct order

Ensure all power supplies are turned off and wait for 10 minutes before starting disassembly

Remove the 6 screws and remove the top panel

Remove the 8 screws of the front panel

Slide the fan motor fixing frame to the left and unfasten the 2 hooks

Unfasten the 2 hooks on the right side

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 2 screws of the terminal cover

Open the terminal cover and pull down to unfasten the 2 hooks

Fan Motor Lead Wire Disconnection

Disconnect the connector [S70] (fan motor)

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw of the stop valve cover.

Slide the stop valve cover downward and remove it.

Remove the 4 screws of the right side panel.

Unfasten the 4 hooks and remove the right side panel.

Cut the clamp and pull out the outdoor heat exchanger thermistor.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw of the terminal board.

Remove the earth / ground screw.

Pull out the clamp (1) and cut the clamp (2).

Remove the earth / ground screw.

Cut the clamp (1) (Hole No.5), pull out the clamp (2) (Hole No.12), and release the relay harness from the hook.
