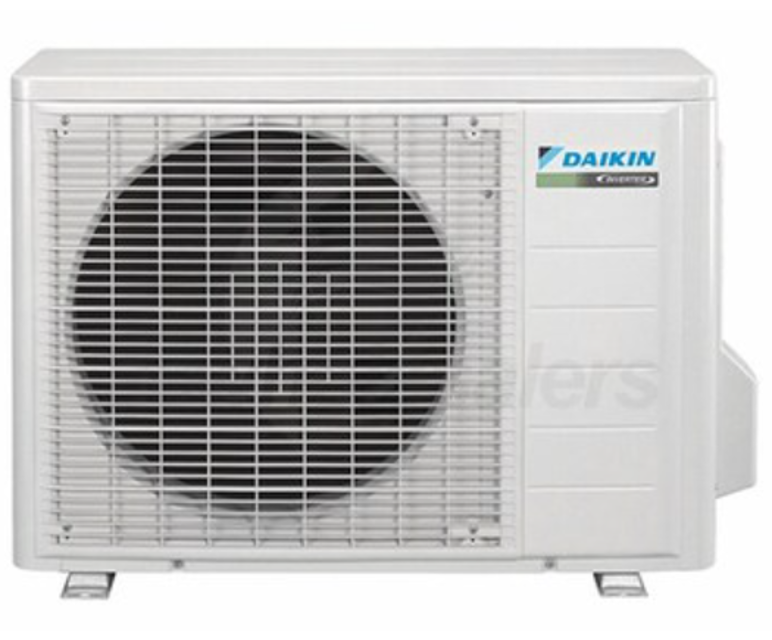

Daikin Outdoor Heat Pump RX15QMVJU

Ensure all power supplies are turned off for at least 10 minutes before starting disassembly

Remove the 6 screws from the top panel

Remove the 8 screws from the front panel

Slide the fan motor fixing frame to the left

Unfasten the 2 hooks on the left side

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw of the terminal board.

Remove the earth / ground screw.

Pull out the clamp (1) and cut the clamp (2).

Remove the earth / ground screw.

Cut the clamp (1) (Hole No.5), pull out the clamp (2) (Hole No.12), and release the relay harness from the hook.

Wait for 10 minutes after turning off all power supplies before starting disassembly

Remove the screw of the stop valve cover

Slide the stop valve cover downward and remove it

Remove the 4 screws of the right side panel

Unfasten the 4 hooks and remove the right side panel

Cut the clamp and pull out the outdoor heat exchanger thermistor

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 7 screws on the terminal board and disconnect the connecting wire and power supply wire.

Loosen the 2 nuts of the conduits and remove the connecting wire and power supply wire.

Remove the 2 screws and remove the conduit mounting plate.

Disconnect the connector [S80] and pull out the clamp (Hole No.1).

Disconnect the connector [S20] and pull out the clamp (Hole No.11).

Has the power supply been turned off for at least 10 minutes?

Remove the sound blanket (back)

Open and pull up the sound blanket (outer)

Remove the sound blanket (inner)

Fit the sound blankets in the correct order
