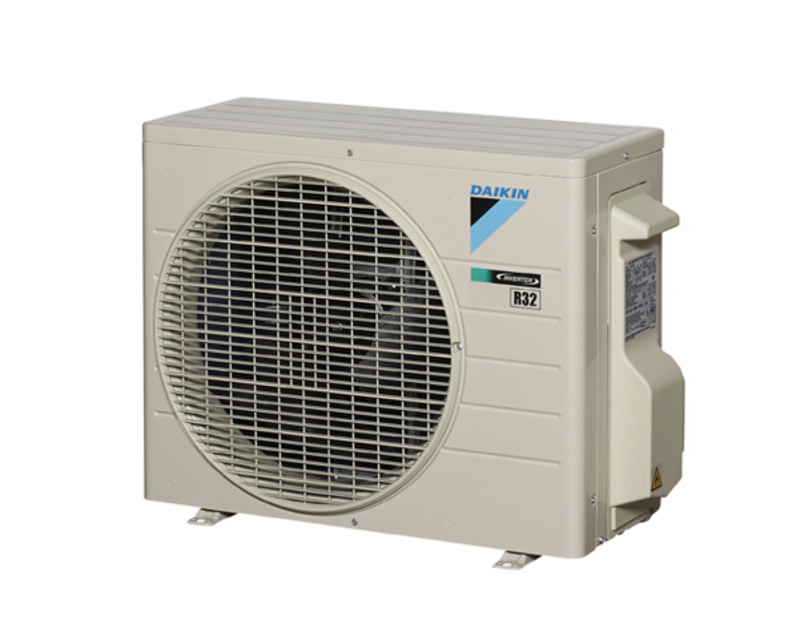

Daikin Outdoor Heat Pump RXV60QVMV

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the electrical box cover

Disconnect the connector [S70] and release the fan motor lead wire from the slit

Remove the nut, and then the outdoor fan

Remove the 2 screws, and then the fan motor fixing frame

Remove the fan motor fixing frame

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 6 screws of the top panel.

Remove the 3 screws of the terminal cover.

Unfasten the 2 hooks and remove the terminal cover.

Remove the 2 screws of the partition plate.

Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the clamps and push the projections from the back of the electrical box

Remove the earth / ground screw.

Disconnect the terminals for power supply

Disconnect the connector [S90].

Remove the 4 screws of the terminal board mounting plate ASSY.

Slide up and remove the terminal board mounting plate ASSY.

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure pipes and parts heated by the gas brazing machine are cool to avoid burns.

Ventilate the room if refrigerant gas leaks during work.

Collect all refrigerant gas to prevent atmospheric discharge.

Restore piping by non-oxidation brazing.

Wrap the four way valve with wet cloth and keep it below 120°C (248°F) to prevent damage.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 3 screws, and then the wire fixture.

Remove the 7 screws on the terminal board and disconnect the connecting wire and power supply wire.

Disconnect the connector [S20] and pull out the clamp.

Disconnect the connector [S80], pull out the clamp (1) and cut the clamp (2).

Disconnect the connector [S40].

Disconnect the relay connector for compressor and pull out the clamp.

Open the sound blanket (top) and detach the discharge pipe thermistor.
