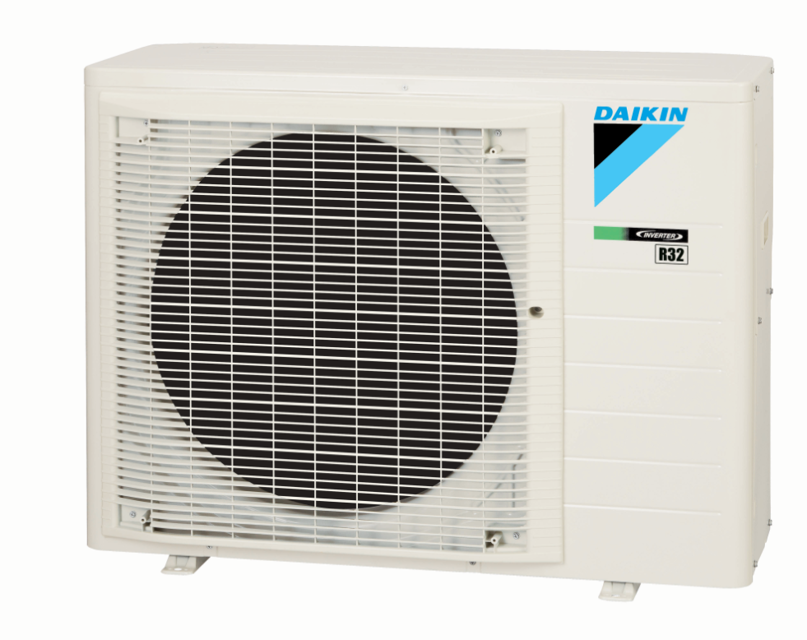

Daikin Cooling-Only Outdoor Unit RKM60QVMA

Has the power supply been turned off for at least 10 minutes?

Pull out the clamps and push the projections from the back of the electrical box

Remove the earth / ground screw

Disconnect the terminals for power supply

Remove the 4 screws of the terminal board mounting plate ASSY

Slide up and remove the terminal board mounting plate ASSY

Wait for 10 minutes after turning off all power supplies before disassembling work.

Ensure no burns from heated pipes and parts.

Ventilate the room if refrigerant gas leaks during work.

Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.

Environmental and Safety Cautions

Do not discharge refrigerant gas into the atmosphere; collect all refrigerant gas.

Restore piping by non-oxidation brazing.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling.

Remove the 6 screws from the top panel.

Remove the 3 screws of the terminal cover.

Unfasten the 2 hooks and remove the terminal cover.

Remove the 2 screws from the partition plate.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the electrical box cover.

Disconnect the connector [S70] and release the fan motor lead wire from the slit.

Remove the nut, and then the outdoor fan.

Remove the 2 screws, and then the fan motor fixing frame.

Remove the fan motor fixing frame.

Wait for 10 minutes after turning off all power supplies before starting disassembly work.

Ensure pipes and parts heated by the gas brazing machine are cool to avoid burns.

Is the room ventilated in case of refrigerant gas leakage?

Collect all refrigerant gas to prevent atmospheric discharge.

Restore the piping by non-oxidation brazing.

Wrap the four way valve with wet cloth and provide water to keep it below 120°C (248°F).
