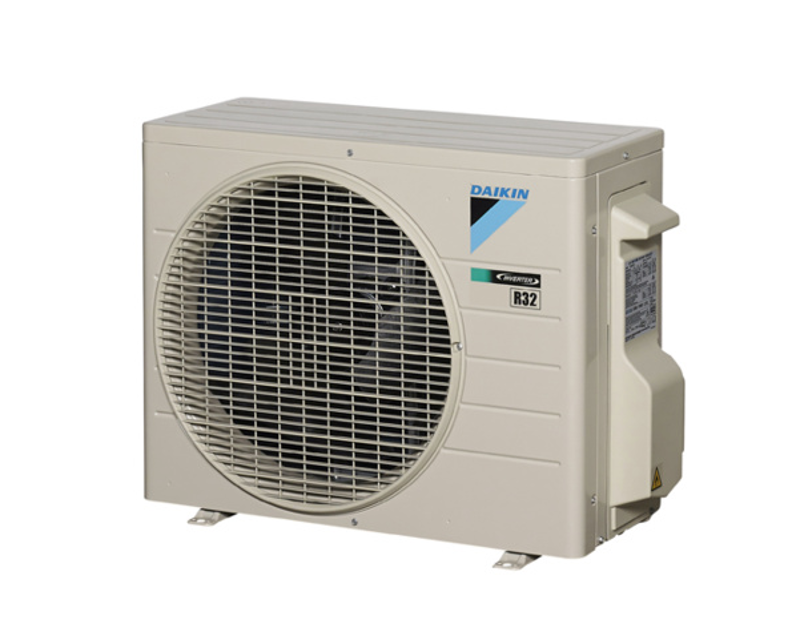

Daikin Outdoor Heat Pump RXM46QVMA

Ensure all power supplies are turned off and wait for 10 minutes before starting disassembly

Remove the 2 screws from the partition plate

Lift up the partition plate and remove it

Fit the lower hook into the bottom frame when reassembling

Open and pull out the sound blanket (outer)

Wait for 10 minutes after turning off all power supplies before disassembling work.

Ensure no burns from heated pipes and parts.

Ventilate the room if refrigerant gas leaks.

Prepare wet cloth to extinguish fire if refrigerant oil catches fire.

Do not discharge refrigerant gas into the atmosphere.

Restore piping by non-oxidation brazing.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the electrical box cover.

Disconnect the connector [S70] and release the fan motor lead wire from the slit.

Remove the nut, and then the outdoor fan.

Remove the 2 screws, and then the fan motor fixing frame.

Remove the fan motor fixing frame.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the 3 screws, and then the wire fixture.

Remove the 7 screws on the terminal board and disconnect the connecting wire and power supply wire.

Disconnect the connector [S20] and pull out the clamp.

Disconnect the connector [S80], pull out the clamp (1) and cut the clamp (2).

Disconnect the connector [S40].

Disconnect the relay connector for compressor and pull out the clamp.

Open the sound blanket (top) and detach the discharge pipe thermistor.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the clamps and push the projections from the back of the electrical box

Remove the earth / ground screw

Disconnect the terminals for power supply

Remove the screws of the terminal board mounting plate ASSY

Slide up and remove the terminal board mounting plate ASSY

Ensure the hook is securely fastened when reassembling
