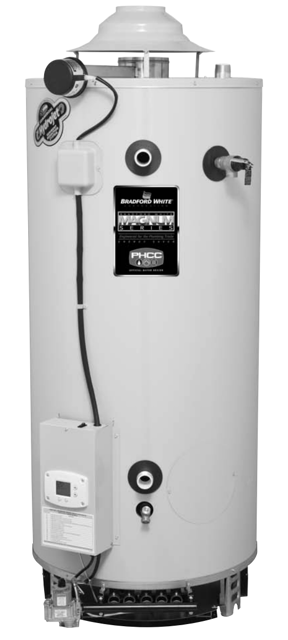

Bradford White Water Heater D75T1253N

Need answers fast?
Explore the manual using AI.

Bradford White Water Heater D75T1253N
Bradford White Water Heater D75T1253N

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bradford White Water Heater D75T1253N

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bradford White Water Heater D75T1253N

Bradford White Water Heater D75T1253N

Create an account to install this asset package.

Maintenance Plans for Bradford White Water Heater Model D75T1253N

Integrate maintenance plans directly into your work orders in MaintainX.

Pilot Operation Testing

Check mark

D24-II Pilot Operation Testing

Check mark

Pilot will not light

Check mark

Reset the control by holding the Lockout Reset button for 3 seconds and confirm the board starts the ignition sequence and sparks; replace the control board if it does not.

Check mark

Confirm there is spark at the pilot; if not, check for a loose or damaged ignition wire, a grounded pilot electrode, or a damaged pilot.

Check mark

Check for 22–27 VAC across control-board pins 8 and 2, and across the MV/PV and PV wire leads at the gas valve, replacing the control board or repairing the harness as indicated.

Check mark

Loosen the pilot tubing connection at the gas valve and soap-test for pilot gas flow; check for a clogged or kinked pilot tube or orifice, or tighten the connection and replace the gas valve if inlet pressure is otherwise okay.

Check mark

Flame rod shorted to ground (error code 57)

Check mark

Pilot lights but no or low flame signal

Check mark

Flame Rod Shorted to Ground

Run this procedureArrow right

Main Burner Operation Testing

Check mark

D24-III Main Burner Operation Testing

Check mark

Safety Precautions

Check mark

WARNING — 120-volt exposure; use caution while performing this procedure.

Check mark

CAUTION — Be careful not to damage or deform connectors or connector pins when making voltage measurements or jumping terminals.

Check mark

Main burner will not light

Check mark

Confirm the pilot is lit and that the control board stops sparking once the pilot is lit; otherwise follow the pilot troubleshooting procedures.

Check mark

Check for 22–27 VAC across control-board pin terminals 5 and 8 with the pilot lit and control not sparking, replacing the control board if voltage is present but the main valve does not open.

Check mark

Disconnect the brown wire lead from the gas valve MV terminal and check for 22–27 VAC across the lead and ground; repair or replace the wire harness if voltage is absent.

Check mark

Check incoming gas pressure and manifold pressure to the burners, replacing the gas valve if inlet pressure is correct but the burner still will not light.

Run this procedureArrow right

Flue Baffle Inspection

Check mark

D24-V Flue Baffle Removal, Inspection

Check mark

Unplug the water heater from its electrical supply.

Check mark

Disconnect the venting from the draft diverter and remove the draft diverter.

Check mark

Disconnect the flue damper from the wire harness and remove it from the top of the water heater.

Check mark

If required, shut off the water supply and disconnect the top plumbing connection.

Check mark

Remove the screws holding the jacket head and remove the jacket head, using a screwdriver to pry underneath if necessary.

Check mark

Remove the insulation to expose the collector cover.

Check mark

Remove the collector cover screws, chiseling away foam if needed to access them.

Check mark

Remove the collector cover using a pipe wrench.

Run this procedureArrow right

Anode Rod Inspection

Check mark

D24-VI Anode Removal and Inspection

Check mark

Safety Precautions

Check mark

Unplug the water heater from its electrical supply and shut off the water supply

Check mark

Open a nearby hot water faucet to relieve tank pressure

Check mark

Drain Water Heater

Check mark

Connect a hose to the drain valve, route it to an open drain, and drain at least 5 gallons

Check mark

Close the valve and disconnect the hose

Check mark

Disassemble Heater Components

Check mark

Disconnect the venting and remove the draft diverter

Run this procedureArrow right

Main and Pilot Burner Inspection

Check mark

D24-IV Main Burner & Pilot Removal and Inspection

Check mark

WARNING — Heater components can be hot during this procedure; take precautions to avoid injury.

Check mark

Main Burner Removal

Check mark

Unplug the water heater from its electrical supply.

Check mark

Turn off the gas supply and rotate the gas valve control knob to OFF.

Check mark

Disconnect the gas supply line and the gas valve wire leads.

Check mark

Disconnect the white flame-sense wire and orange ignition wire from the control board.

Check mark

Remove the two burner rack mounting screws and slide the burner rack out of the heater.

Check mark

To reinstall, reverse the removal steps, then check for gas leaks and verify proper operation.

Run this procedureArrow right
