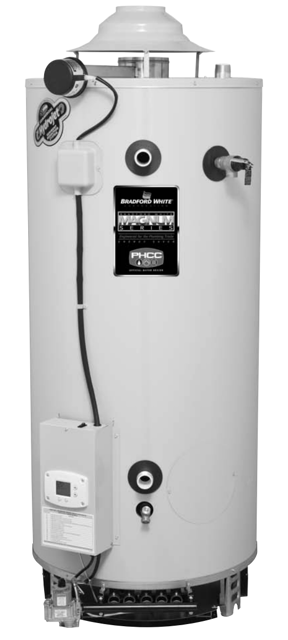

Bradford White Water Heater D38T1553N

Need answers fast?
Explore the manual using AI.

Bradford White Water Heater D38T1553N
Bradford White Water Heater D38T1553N

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bradford White Water Heater D38T1553N

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bradford White Water Heater D38T1553N

Bradford White Water Heater D38T1553N

Create an account to install this asset package.

Maintenance Plans for Bradford White Water Heater Model D38T1553N

Integrate maintenance plans directly into your work orders in MaintainX.

Thermostat Circuit Testing

Check mark

D24-I Thermostat Circuit Testing

Check mark

Check error codes on display

Check mark

Unplug or disconnect electrical power to the water heater

Check mark

Check continuity of the wire harness to the affected sensor

Check mark

Is the harness resistance close to 0 ohms?

Check mark

Replace the harness if high resistance or damaged insulation is found

Check mark

Check sensor resistance against the sensor resistance table

Check mark

Restore power and run the heater through a full heating cycle

Check mark

Verify proper operation by viewing sensor temperature in Service Mode when the burner shuts off

Run this procedureArrow right

Main Burner Operation Testing

Check mark

D24-III Main Burner Operation Testing

Check mark

Main burner will not light

Check mark

Confirm the pilot is lit and that the control board stops sparking once the pilot is lit

Check mark

Check for 22–27 VAC across control-board pin terminals 5 and 8 with the pilot lit and control not sparking

Check mark

Replace the control board if voltage is present but the main valve does not open

Check mark

Disconnect the brown wire lead from the gas valve MV terminal and check for 22–27 VAC across the lead and ground

Check mark

Repair or replace the wire harness if voltage is absent

Check mark

Check incoming gas pressure and manifold pressure to the burners

Check mark

Replace the gas valve if inlet pressure is correct but the burner still will not light

Run this procedureArrow right

Pilot Operation Testing

Check mark

D24-II Pilot Operation Testing

Check mark

WARNING — 120-volt exposure; use caution while performing this procedure.

Check mark

CAUTION — Be careful not to damage or deform connectors or connector pins when making voltage measurements or jumping terminals.

Check mark

Pilot will not light

Check mark

Reset the control by holding the Lockout Reset button for 3 seconds and confirm the board starts the ignition sequence and sparks; replace the control board if it does not.

Check mark

Confirm there is spark at the pilot; if not, check for a loose or damaged ignition wire, a grounded pilot electrode, or a damaged pilot.

Check mark

Check for 22–27 VAC across control-board pins 8 and 2, and across the MV/PV and PV wire leads at the gas valve, replacing the control board or repairing the harness as indicated.

Check mark

Loosen the pilot tubing connection at the gas valve and soap-test for pilot gas flow; check for a clogged or kinked pilot tube or orifice, or tighten the connection and replace the gas valve if inlet pressure is otherwise okay.

Check mark

Flame rod shorted to ground (error code 57)

Run this procedureArrow right

Flue Baffle Inspection

Check mark

D24-V Flue Baffle Removal, Inspection

Check mark

Unplug the water heater from its electrical supply.

Check mark

Disconnect the venting from the draft diverter and remove the draft diverter.

Check mark

Disconnect the flue damper from the wire harness and remove it from the top of the water heater.

Check mark

If required, shut off the water supply and disconnect the top plumbing connection.

Check mark

Remove the screws holding the jacket head and remove the jacket head, using a screwdriver to pry underneath if necessary.

Check mark

Remove the insulation to expose the collector cover.

Check mark

Remove the collector cover screws, chiseling away foam if needed to access them.

Check mark

Remove the collector cover using a pipe wrench.

Run this procedureArrow right

Anode Rod Inspection

Check mark

D24-VI Anode Removal and Inspection

Check mark

Unplug the water heater from its electrical supply and shut off the water supply.

Check mark

Open a nearby hot water faucet to relieve tank pressure.

Check mark

Connect a hose to the drain valve, route it to an open drain, and drain at least 5 gallons before closing the valve and disconnecting the hose.

Check mark

Disconnect the venting and remove the draft diverter.

Check mark

Disconnect the flue damper from the wire harness and remove it.

Check mark

Is it required to disconnect the top plumbing connection?

Check mark

Remove the screws holding the jacket head and remove it, using a screwdriver to pry underneath if necessary.

Check mark

Remove the insulation, and the collector cover if necessary, to access the anode rods.

Run this procedureArrow right
