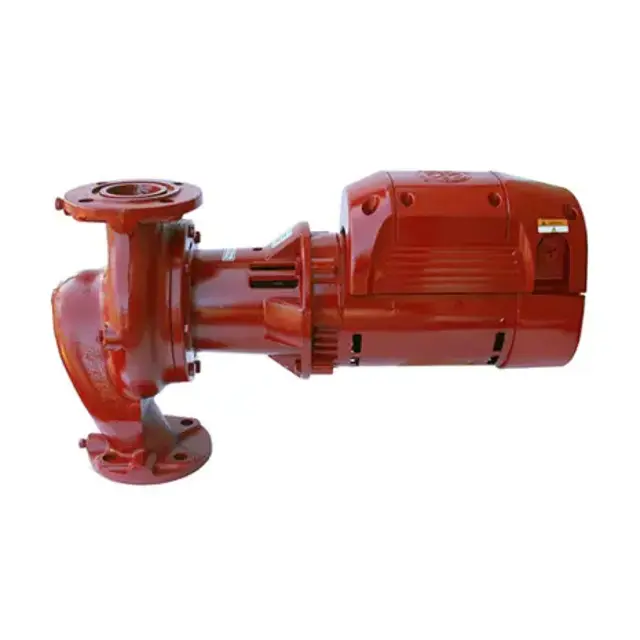

Bell & Gossett In-Line Mounted Pump 604

Need answers fast?
Explore the manual using AI.

Bell & Gossett In-Line Mounted Pump 604
Bell & Gossett In-Line Mounted Pump 604

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bell & Gossett In-Line Mounted Pump 604

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bell & Gossett In-Line Mounted Pump 604

Bell & Gossett In-Line Mounted Pump 604

Create an account to install this asset package.

Maintenance Plans for Bell & Gossett In-Line Mounted Pump Model 604

Integrate maintenance plans directly into your work orders in MaintainX.

Bearing Assembly and Impeller Removal

Check mark

WARNING: Pressure Release

Check mark

Bearing Assembly Removal

Check mark

Remove the eight capscrews that hold the bearing assembly or adapter ring to the volute.

Check mark

Remove the bearing assembly.

Check mark

Impeller Removal

Check mark

Insert a long punch between the impeller vanes or grasp the impeller with a strap wrench to prevent the impeller from turning.

Check mark

Remove the impeller nut, lockwasher, impeller, and adapter ring.

Check mark

Seal Parts and Coverplate Removal

Check mark

Select your bearing assembly type

Run this procedureArrow right

Spring Type Coupler and Motor Reinstallation

Check mark

Install the new coupler on the pump shaft

Check mark

Ensure the coupler setscrew is seated in the shaft dimple

Check mark

Lift the motor into position and attach the motor side coupler half

Check mark

Ensure the coupler setscrew is seated in the shaft dimple on the motor side

Check mark

Support the motor and install the four screws that hold the motor to the bearing assembly

Check mark

Attach the conduit and power leads to the conduit box

Check mark

Connect the power leads to the motor leads

Check mark

Replace the conduit box cover

Check mark

Check for proper motor rotation (clockwise when viewed from the back of the motor)

Run this procedureArrow right

Seal Reinstallation

Check mark

Preparation

Check mark

Clean the shaft sleeve and seal seat recess

Check mark

Polish the sleeve using crocus cloth

Check mark

Seat Installation

Check mark

Install the seat gasket and seat into the seal recess

Check mark

Seal Head Installation

Check mark

Lubricate the seal boot with soapy water

Check mark

Slide the complete seal head over the shaft

Check mark

Ensure the protrusions in the driver remain engaged in the notches in the carbon

Run this procedureArrow right

Elastomeric Type Coupler and Motor Reinstallation

Check mark

Position the coupler half on the pump shaft

Check mark

Select the pump shaft type and coupler size

Check mark

If dimpled shaft, ensure setscrew is positioned over the dimple and tightened

Check mark

If keyed shaft with size 4J coupler, ensure shaft end extends 0.25 in. past the coupler half flange face and setscrews are tightened

Check mark

If keyed shaft with size 5J coupler, ensure shaft end is flush with the coupler half flange face and setscrews are tightened

Check mark

Position the coupler half on the motor shaft

Check mark

Select the motor shaft type

Check mark

If dimpled shaft, ensure setscrew is positioned over the dimple and tightened

Check mark

If keyed shaft, ensure coupler half is slid onto the motor shaft without tightening setscrews

Run this procedureArrow right

Seal Removal

Check mark

Seal Disassembly

Check mark

Remove the spring retainer and seal spring

Check mark

Pry the compression ring off the seal boot

Check mark

Insert a standard screwdriver under the seal head and carefully pry the seal head off the shaft

Check mark

Use a small screwdriver to loosen and remove the seal seat and gasket

Check mark

Seat Retainer Inspection

Check mark

Is the seat retainer in good condition?

Check mark

If the seat retainer is in bad condition, pry it out and replace it with the new one provided in the seal kit

Run this procedureArrow right
