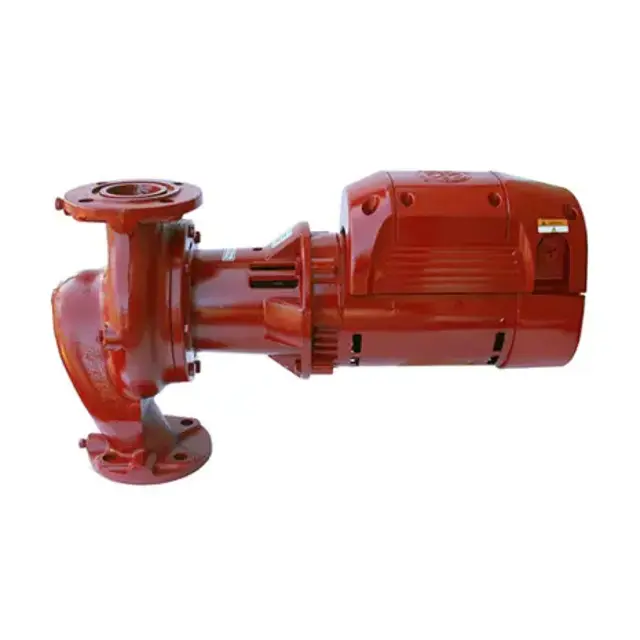

Bell & Gossett In-Line Mounted Pump 612

Need answers fast?
Explore the manual using AI.

Bell & Gossett In-Line Mounted Pump 612
Bell & Gossett In-Line Mounted Pump 612

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bell & Gossett In-Line Mounted Pump 612

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bell & Gossett In-Line Mounted Pump 612

Bell & Gossett In-Line Mounted Pump 612

Create an account to install this asset package.

Maintenance Plans for Bell & Gossett In-Line Mounted Pump Model 612

Integrate maintenance plans directly into your work orders in MaintainX.

Bearing Assembly and Impeller Reinstallation

Check mark

WARNING: Use a new gasket when reinstalling the bearing assembly to prevent injury or damage.

Check mark

Bearing Assembly Preparation

Check mark

Wipe the bearing bores clean and remove any rust or scale deposits with a fine emery cloth.

Check mark

Insert the new wave spring into the rear bearing bore.

Check mark

Insert the shaft assembly into the housing and then install and tighten the retaining screws.

Check mark

For cast iron bearing assemblies, did you install the coverplate on the housing?

Check mark

Lubrication

Check mark

Select the type of housing for lubrication instructions

Check mark

Lubricate the OD of the rear bearing with grease.

Run this procedureArrow right

Elastomeric Type Coupler and Motor Reinstallation

Check mark

Position the coupler half on the pump shaft

Check mark

Select the pump shaft type and coupler size

Check mark

If dimpled shaft, ensure setscrew is positioned over the dimple and tightened

Check mark

If keyed shaft with size 3J coupler, slide the coupler half on the shaft without tightening the setscrew

Check mark

If keyed shaft with size 4J coupler, ensure shaft end extends 0.25 in. past the coupler half flange face and tighten setscrews

Check mark

If keyed shaft with size 5J coupler, ensure shaft end is flush with the coupler half flange face and tighten setscrews

Check mark

Position the coupler half on the motor shaft

Check mark

Select the motor shaft type

Check mark

If dimpled shaft, ensure setscrew is positioned over the dimple and tightened

Run this procedureArrow right

Pump Inspection

Check mark

Pre-assembly Inspection

Check mark

Inspect the pump parts

Check mark

Replace any part that does not meet the required criteria

Check mark

Cleaning of Pump Parts

Check mark

Clean the pump parts in solvent to remove oil, grease, and dirt

Check mark

Ensure all parts are clean

Check mark

Protection of Machined Surfaces

Check mark

Protect machined surfaces while cleaning

Run this procedureArrow right

Motor and Coupler Removal

Check mark

Safety Precautions

Check mark

Disconnect and lock out electrical power before installing or servicing the unit.

Check mark

Motor Disconnection

Check mark

Turn off and lock out power to the motor.

Check mark

Remove the conduit box cover.

Check mark

Disconnect the power leads from the motor leads.

Check mark

Remove the conduit and power leads from the conduit box.

Check mark

Motor Removal

Check mark

Support the motor.

Run this procedureArrow right

Spring Type Coupler and Motor Reinstallation

Check mark

Install the new coupler on the pump shaft

Check mark

Ensure the coupler setscrew is seated in the shaft dimple

Check mark

Lift the motor into position and attach the motor side coupler half

Check mark

Ensure the motor side coupler setscrew is seated in the shaft dimple

Check mark

Support the motor and install the four screws that hold the motor to the bearing assembly

Check mark

Attach the conduit and power leads to the conduit box

Check mark

Connect the power leads to the motor leads

Check mark

Replace the conduit box cover

Check mark

Check for proper motor rotation (clockwise when viewed from the back of the motor)

Run this procedureArrow right
