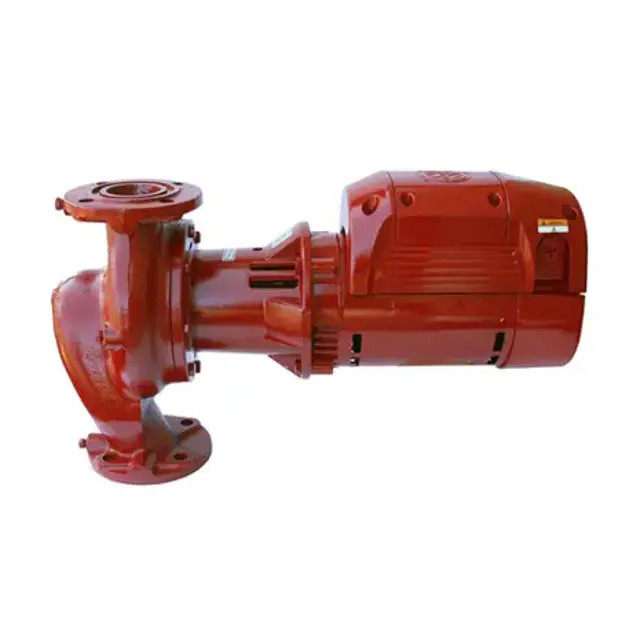

Bell & Gossett In-Line Mounted Pump 613

Need answers fast?
Explore the manual using AI.

Bell & Gossett In-Line Mounted Pump 613
Bell & Gossett In-Line Mounted Pump 613

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bell & Gossett In-Line Mounted Pump 613

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bell & Gossett In-Line Mounted Pump 613

Bell & Gossett In-Line Mounted Pump 613

Create an account to install this asset package.

Maintenance Plans for Bell & Gossett In-Line Mounted Pump Model 613

Integrate maintenance plans directly into your work orders in MaintainX.

Bearing Assembly and Impeller Reinstallation

Check mark

WARNING: Use a new gasket when reinstalling the bearing assembly

Check mark

Bearing Assembly Preparation

Check mark

Wipe the bearing bores clean

Check mark

Remove any rust or scale deposits with a fine emery cloth

Check mark

Insert the new wave spring into the rear bearing bore

Check mark

Lubricate the OD of the rear bearing with grease

Check mark

Shaft Assembly Installation

Check mark

Insert the shaft assembly into the housing

Check mark

Install and tighten the retaining screws

Run this procedureArrow right

Pump Inspection

Check mark

Pre-assembly Inspection

Check mark

Inspect the pump parts

Check mark

Replace any part that does not meet the required criteria

Check mark

Cleaning of Pump Parts

Check mark

Clean the pump parts in solvent to remove oil, grease, and dirt

Check mark

Ensure machined surfaces are protected during cleaning to prevent equipment damage

Run this procedureArrow right

Impeller Replacement

Check mark

Inspection Criteria

Check mark

Check for the following conditions on the impeller

Check mark

Replacement Process

Check mark

Ensure the equipment is powered off and locked out

Check mark

Remove the casing to access the impeller

Check mark

Carefully remove the worn impeller

Check mark

Install the new impeller ensuring proper alignment

Check mark

Reattach the casing securely

Check mark

Post Replacement Check

Run this procedureArrow right

Elastomeric Type Coupler and Motor Reinstallation

Check mark

Position the coupler half on the pump shaft

Check mark

Select the pump shaft type and coupler size

Check mark

If dimpled shaft, ensure setscrew is positioned over the dimple and tightened

Check mark

If keyed shaft with size 3J coupler, slide the coupler half on the shaft without tightening the setscrew

Check mark

If keyed shaft with size 4J coupler, ensure shaft end extends 0.25 in. past the coupler half flange face and tighten setscrews

Check mark

If keyed shaft with size 5J coupler, ensure shaft end is flush with the coupler half flange face and tighten setscrews

Check mark

Position the coupler half on the motor shaft

Check mark

Select the motor shaft type

Check mark

If dimpled shaft, ensure setscrew is positioned over the dimple and tightened

Run this procedureArrow right

Bearing Assembly and Impeller Removal

Check mark

WARNING: Pressure Release

Check mark

Loosen the eight volute capscrews to relieve pressure in the pump body.

Check mark

Shift the bearing assembly slightly to allow pressurized water to escape.

Check mark

Bearing Assembly Removal

Check mark

Remove the eight capscrews that hold the bearing assembly or adapter ring to the volute.

Check mark

Remove the bearing assembly.

Check mark

Impeller Removal

Check mark

Insert a long punch between the impeller vanes or use a strap wrench to prevent the impeller from turning.

Check mark

Remove the impeller nut, lockwasher, impeller, and adapter ring.

Run this procedureArrow right
