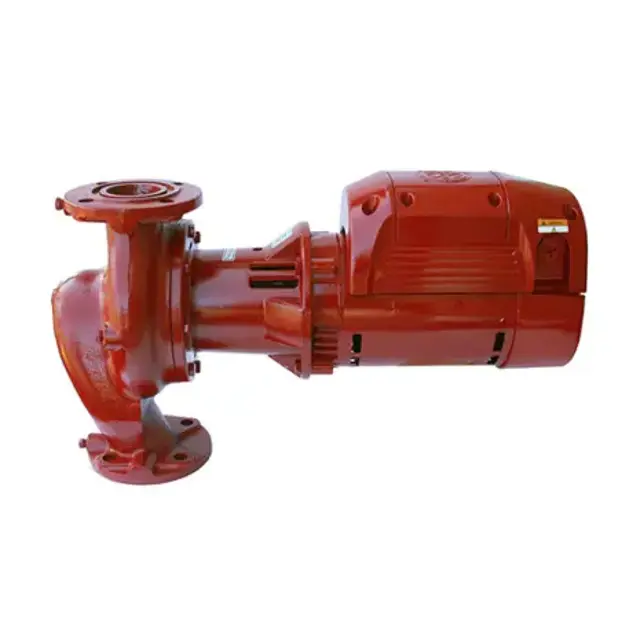

Bell & Gossett In-Line Mounted Pump 616

Bell & Gossett In-Line Mounted Pump 616

Create an account to install this asset package.

Maintenance Plans for Bell & Gossett In-Line Mounted Pump Model 616

Integrate maintenance plans directly into your work orders in MaintainX.

Elastomeric Type Coupler and Motor Reinstallation

Check mark

Position the coupler half on the pump shaft

Check mark

Select the pump shaft type and coupler size

Check mark

Tighten the setscrew over the dimple if applicable

Check mark

Slide the coupler half on the shaft and tighten setscrews if applicable

Check mark

Position the coupler half on the motor shaft

Check mark

Select the motor shaft type

Check mark

Tighten the setscrew over the dimple if applicable

Check mark

Slide the coupler half on the motor shaft without tightening setscrews if applicable

Check mark

Place the new insert in the pump side coupler half

Run this procedureArrow right

Impeller Replacement

Check mark

Inspection Criteria

Check mark

Check for the following conditions on the impeller

Check mark

Replacement Process

Check mark

Ensure the pump is turned off and isolated from power supply

Check mark

Remove the pump casing to access the impeller

Check mark

Carefully remove the old impeller

Check mark

Install the new impeller ensuring it is securely fitted

Check mark

Reassemble the pump casing

Check mark

Test the pump to ensure proper operation after replacement

Run this procedureArrow right

Spring Type Coupler and Motor Reinstallation

Check mark

Install the new coupler on the pump shaft

Check mark

Ensure the coupler setscrew is seated in the shaft dimple

Check mark

Lift the motor into position and attach the motor side coupler half

Check mark

Ensure the coupler setscrew is seated in the shaft dimple on the motor side

Check mark

Support the motor and install the four screws that hold the motor to the bearing assembly

Check mark

Attach the conduit and power leads to the conduit box

Check mark

Connect the power leads to the motor leads

Check mark

Replace the conduit box cover

Check mark

Motor Rotation Check

Run this procedureArrow right

Seal Reinstallation

Check mark

Preparation

Check mark

Clean the shaft sleeve and seal seat recess

Check mark

Polish the sleeve using crocus cloth without scratching or gouging

Check mark

Seat Installation

Check mark

Install the seat gasket and seat into the seal recess

Check mark

Seal Head Installation

Check mark

Lubricate the seal boot with soapy water

Check mark

Slide the complete seal head over the shaft

Check mark

Ensure the carbon ring contacts the seat and driver protrusions engage in the carbon notches

Run this procedureArrow right

Motor and Coupler Removal

Check mark

Safety Precautions

Check mark

Disconnect and lock out electrical power before installing or servicing the unit.

Check mark

Always disconnect and lock out power to the driver before performing any installation or maintenance tasks.

Check mark

Motor Removal

Check mark

Turn off and lock out power to the motor.

Check mark

Remove the conduit box cover.

Check mark

Disconnect the power leads from the motor leads.

Check mark

Remove the conduit and power leads from the conduit box.

Check mark

Support the motor and remove the four screws that hold the motor to the bearing assembly.

Run this procedureArrow right
