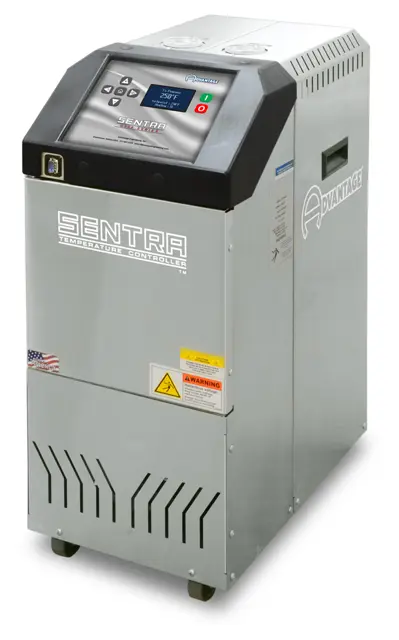

Advantage Temperature Control Unit SK-2465-G

Disengage operations and ensure all system pressure is relieved

Verify that the unit's pressure gauges read "0"

Verify the Power light on the display is "off"

Remove the lift-off access panel and set aside

Drain machine by removing the pump casing drain plug

Call the factory for diagnostic assistance

Was a control instrument determined to be at fault?

Send a new or reconditioned instrument as a replacement

Return the defective instrument freight pre-paid for full credit

Was the defective instrument returned?

Pay for the instrument if not returned

Out of Warranty Service Incident

Call the factory for diagnostic assistance

Disengage process operations and relieve all system pressure

Verify the Power light on the display is 'off'

Remove the lift-off access panel and set aside

Remove the thermoformed panel attached by 4 small screws

Drain machine by removing the pump casing drain plug

Ensure all necessary equipment is available

Disengage process operations according to the unit manual

Remove the 'to process' temperature probe and insert a 1/2" plug

Prepare an ice bath and place a digital thermometer in it

Place the probe in the ice bath

Unplug the sensor probe connection

Shake out water from the service connection

Replug the sensor probe connection

Did the error display change to Solid Red?

Press the Start push button to clear the error display

Cease process operations as outlined in section 3.4 of the manual

Ensure all process pressure is relieved and pressure gauges read '0' pressure
