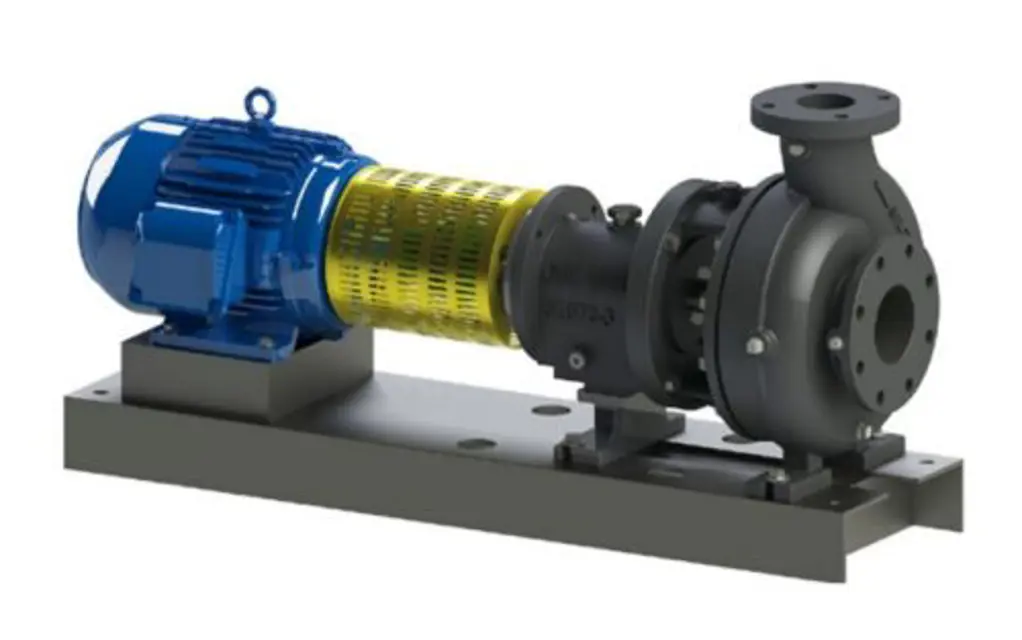

Gusher Pumps Pump 6×6
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Gusher Pumps Pump 6×6
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Gusher Pumps Pump 6×6
Create an account to install this asset package.
Maintenance Plans for Gusher Pumps Pump Model 6×6
Integrate maintenance plans directly into your work orders in MaintainX.
Impeller Clearance Inspection
Installation — Impeller Adjustment
Ensure the following parts are disconnected or loosened
Lightly tap shaft (#1) until impeller bottoms on the intake flange
Tighten three adjusting screws by hand until they touch ball bearing housing
Tighten three adjusting screws just up to the point where the shaft turns freely; then tighten each screw an additional ¼ turn
Tighten locking screws (#57) and jamb nuts (#56)
Rotate coupling by hand to ensure impeller does not rub intake flange
If impeller rubs, repeat steps 1 through 8
Connect Coupling
600 Hourly Ball Bearing Lubrication
Maintenance — Lubrication
Ensure pump is shut down before lubrication
Verify no mixing of grease types
Use appropriate grease
Ensure initial fill grease is purged if using alternative grease
Avoid over-greasing to prevent overheating
Ensure bearings do not exceed 225°F
Shut down pump
Remove relief from back of ball bearing housing
Initial 300 Hours Coupling Alignment Check
INSTALLATION — Coupling Alignment (Chair Mounted Model ONLY)
Check Parallel Alignment
Check Angular Alignment
Adjust Coupling Alignment if Necessary
Adjust Lateral Parallel Misalignment
Adjust Horizontal Parallel Misalignment
Adjust Lateral Angular Misalignment
Adjust Horizontal Angular Misalignment
Final Adjustment if Alignment Cannot be Achieved
Impeller Adjustment
Preparation
Disconnect coupling (#32) and remove sleeve (#32a)
Loosen three locking screws (#57)
Loosen three adjusting screws (#55)
Impeller Adjustment
Lightly tap shaft (#1) until impeller bottoms on the intake flange
Tighten three adjusting screws by hand until they touch ball bearing housing
Tighten three adjusting screws just up to the point where the shaft turns freely; then tighten each screw an additional ¼ turn
Tighten locking screws (#57) and jamb nuts (#56)
1200 Hourly Coupling Alignment Check
MAINTENANCE — Coupling Alignment
Verify coupling alignment schedule
Check Parallel Alignment
Check Angular Alignment
Adjustment Procedures
Adjust Lateral Parallel Misalignment
Adjust Horizontal Parallel Misalignment
Adjust Lateral Angular Misalignment
Adjust Horizontal Angular Misalignment
