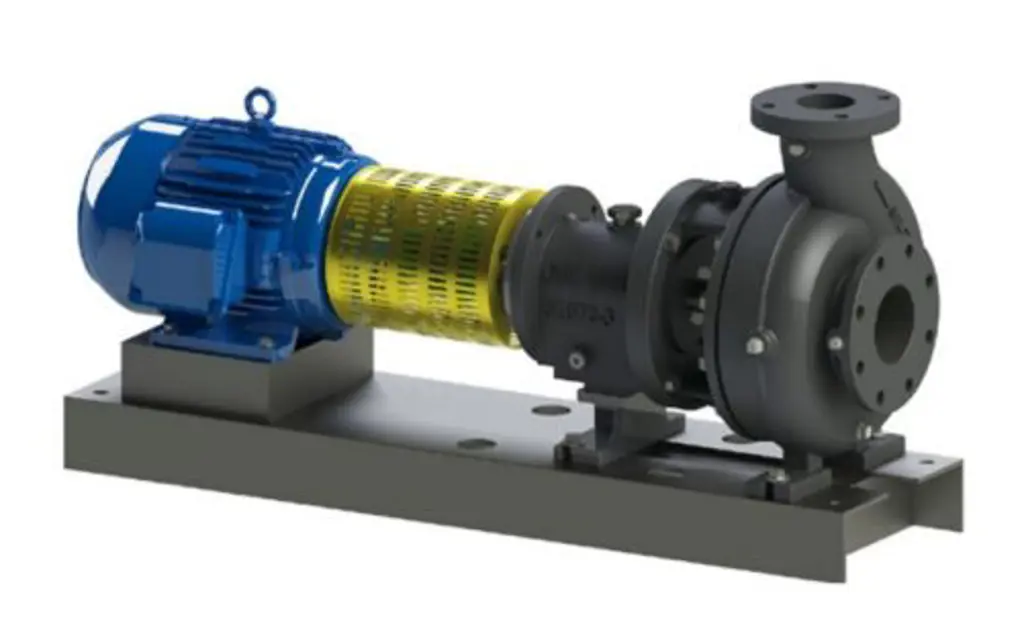

Gusher Pumps Pump CL1×2
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Gusher Pumps Pump CL1×2
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Gusher Pumps Pump CL1×2
Create an account to install this asset package.
Maintenance Plans for Gusher Pumps Pump Model CL1×2
Integrate maintenance plans directly into your work orders in MaintainX.
600 Hourly Ball Bearing Lubrication
Maintenance — Lubrication
Ensure all safety precautions are followed
Shut down pump
Remove relief from back of ball bearing housing
Fill with grease until fresh grease flows from opening
Is an automatic lubrication system being used?
Place reliefs in the tapped hole (1/8" N.P.T.) if automatic lubrication system is used
Ball Bearing Temperature Inspection
MAINTENANCE — Lubrication / START UP
Check ball bearing temperature using a pyrometer
Is the ball bearing temperature below 225°F?
Note if bearings seem to run tight and hot upon initial startup
Confirm if the pump operates normally after approximately 150 hours of service
Bearing Maintenance
Bearing Installation
Clean the work area thoroughly
Apply mounting force against the ring being press-fitted
Ensure no pressure or hammer blows are applied to the other ring
Use an arbor press with a face block contacting only the bearing inner ring
Press the shaft through the bearing until seated firmly against the shaft shoulder
Ensure tubing is clean and diameter is slightly greater than the bearing journal
Ensure tubing end is square and contacts only the bearing inner ring
Align shaft with the ram of the arbor press to avoid cocking
Impeller Clearance Inspection
Installation — Impeller Adjustment
Ensure all parts are in place before starting
Verify clearance between impeller and housing or intake flange
Disconnect coupling (#32) and remove sleeve (#32a)
Loosen three locking screws (#57)
Loosen three adjusting screws (#55)
Lightly tap shaft (#1) until impeller bottoms on the intake flange
Tighten three adjusting screws by hand until they touch ball bearing housing
Tighten three adjusting screws just up to the point where the shaft turns freely; then tighten each screw an additional ¼ turn
Impeller Adjustment
Preparation
Disconnect coupling (#32) and remove sleeve (#32a)
Loosen three locking screws (#57)
Loosen three adjusting screws (#55)
Impeller Adjustment
Lightly tap shaft (#1) until impeller bottoms on the intake flange
Tighten three adjusting screws by hand until they touch ball bearing housing
Tighten three adjusting screws just up to the point where the shaft turns freely; then tighten each screw an additional ¼ turn
Tighten locking screws (#57) and jamb nuts (#56)
