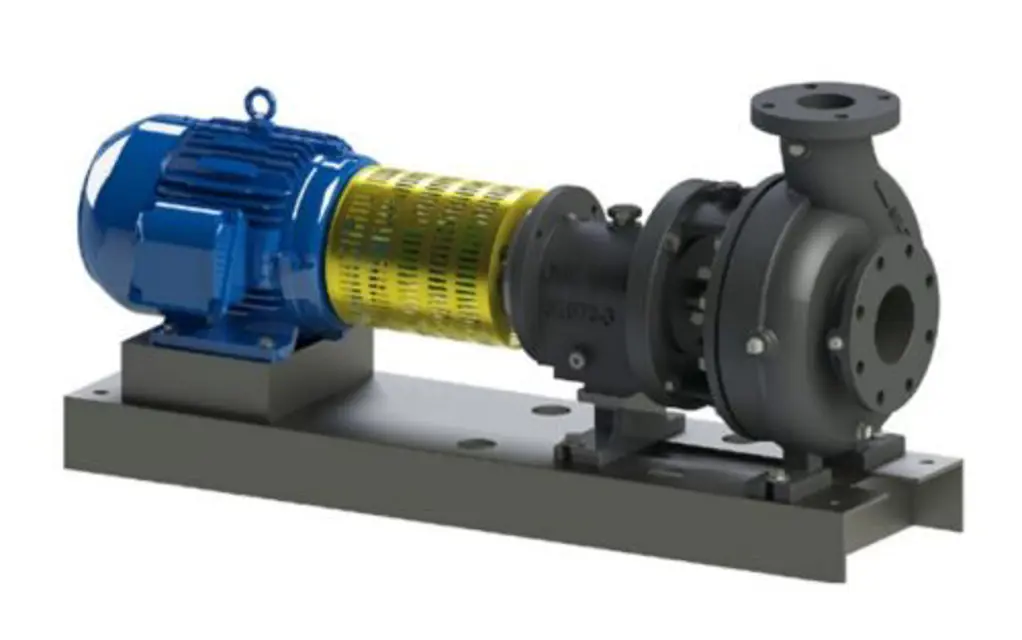

Gusher Pumps Pump CL1.5×3
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Gusher Pumps Pump CL1.5×3
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Gusher Pumps Pump CL1.5×3
Create an account to install this asset package.
Maintenance Plans for Gusher Pumps Pump Model CL1.5×3
Integrate maintenance plans directly into your work orders in MaintainX.
Ball Bearing Temperature Inspection
MAINTENANCE — Lubrication / START UP
Check ball bearing temperature using a pyrometer
Is the ball bearing temperature below 225°F?
Note if bearings seem to run tight and hot upon initial startup
Confirm if the pump operates normally after approximately 150 hours of service
1200 Hourly Coupling Alignment Check
MAINTENANCE — Coupling Alignment
Verify coupling alignment schedule
Check Parallel Alignment
Check Angular Alignment
Adjustment Procedures
Adjust Lateral Parallel Misalignment
Adjust Horizontal Parallel Misalignment
Adjust Lateral Angular Misalignment
Adjust Horizontal Angular Misalignment
Initial 300 Hours Coupling Alignment Check
INSTALLATION — Coupling Alignment (Chair Mounted Model ONLY)
Check Parallel Alignment
Check Angular Alignment
Check Coupling Alignment Before and After System Start-up
Adjust Coupling Alignment if Out
Adjust Lateral Parallel Misalignment
Adjust Horizontal Parallel Misalignment
Adjust Lateral Angular Misalignment
Adjust Horizontal Angular Misalignment
Impeller Adjustment
Preparation
Disconnect coupling (#32) and remove sleeve (#32a)
Loosen three locking screws (#57)
Loosen three adjusting screws (#55)
Adjustment
Lightly tap shaft (#1) until impeller bottoms on the intake flange
Tighten three adjusting screws by hand until they touch ball bearing housing
Tighten three adjusting screws just up to the point where the shaft turns freely; then tighten each screw an additional ¼ turn
Tighten locking screws (#57) and jamb nuts (#56)
Pump Maintenance
Disassembly
Disconnect electrical leads
Remove coupling guard
Disconnect coupling
Remove four motor retaining bolts
Break welds loose that hold discharge pipe cover plate to mounting plate
Remove bolts & nuts that hold discharge pipe to impeller housing
Remove discharge pipe
Chair and Drive Motor: 52VHD Power Frame
