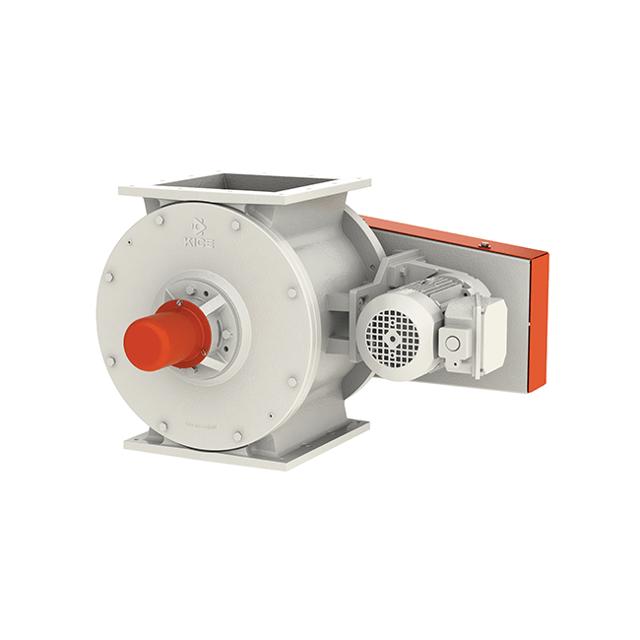

KICE Rotary Airlock VBXS 20x12

Check motor model compatibility

Contact local dealer or service representative for parts or service

Contact Kice Customer Service Department if service or repair components are difficult to obtain

Lock and tag out all energy sources associated with the airlock

Review all Safety Precautions noted in the manual

Refer to Appendix 10 for clearance information

Turn off the airlock and remove all potential energy sources following SOPs and lockout/tagout procedures

Remove the airlock from system to obtain unobstructed access to rotor

Place a block in the airlock to prevent the rotor from turning unexpectedly

Turn off airlock and remove all potential energy sources following SOPs and lockout/tagout procedures before removing chain guard cover.

Confirm the sprockets are in good condition and teeth are not excessively worn.

Confirm the chain is free of grit and debris and is in good condition. Pins and bushings should not have flat surfaces and should release smoothly from each sprocket while in motion.

Verify all three sprockets are aligned in the same plane. The idler sprocket will determine the axial alignment plane.

Enter the shaft center distance in inches.

Enter the calculated chain deflection in inches (2% to 3% of shaft center distance).
