Mechanical Failure Analysis: How to Find (and Fix) Problems Before They Get Worse

When machinery fails unexpectedly, the consequences ripple throughout your entire operation. Unplanned downtime, safety risks, and production headaches follow. Mechanical failure analysis, the systematic investigation of why components break down, helps you prevent these situations by identifying root causes and implementing targeted solutions.

Key takeaways

• Mechanical failure analysis identifies true root causes, not just symptoms, allowing you to implement effective corrective actions that prevent recurrence.
• Most mechanical failures fall into predictable categories: fatigue, corrosion/wear, fracture/deformation, or overload/material defects.
• Structured investigation methods, from visual inspection to laboratory analysis, provide crucial evidence about failure mechanisms.
• Digital CMMS tools and preventive maintenance strategies transform reactive firefighting into proactive reliability management.

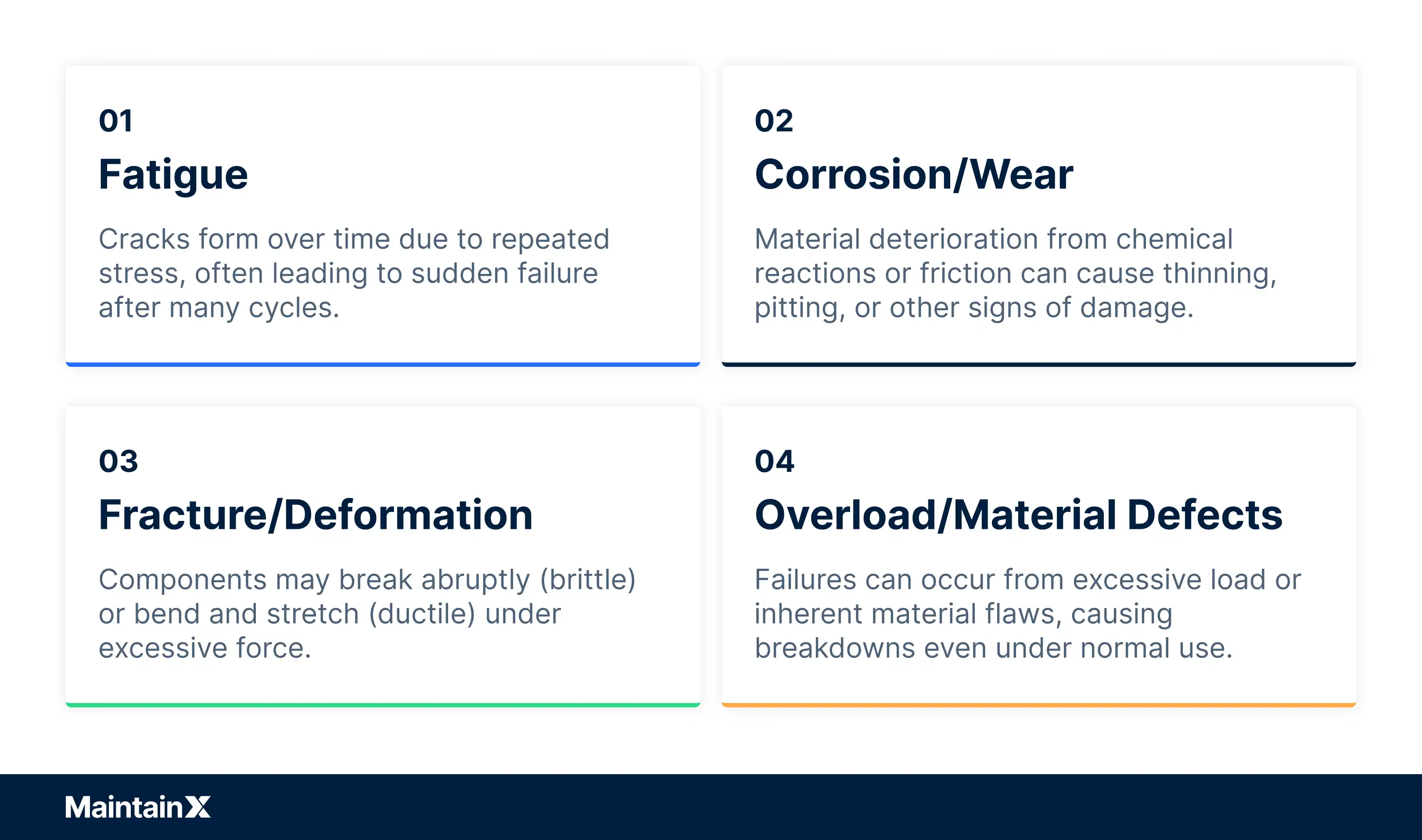

Common types of mechanical failure

As a maintenance professional, understanding how components typically fail helps you diagnose problems quickly and implement targeted preventive measures.

Fatigue failure

Definition and causes: Fatigue failure occurs when a component fractures after repeated cycles of stress, even at levels below its normal yield strength. The process begins with microscopic cracks at stress concentration points (like notches or threads) that gradually grow until the component suddenly breaks.

Detection and signs: Look for "beach marks" or concentric ridges on fracture surfaces, indicating incremental crack growth over many load cycles. The final fracture area often has a different texture than the fatigue crack region. Your team can use non-destructive testing methods like dye penetrant or ultrasonic inspection to detect fatigue cracks before complete failure.

Example: A pump shaft that develops a crack after millions of rotations, eventually fracturing during normal operation, which could indicate potential future failures.

Corrosion and wear

Definition and causes: Corrosion is the deterioration of material due to various factors, including chemical or electrochemical reactions with its environment. Wear is the physical erosion of surfaces through mechanical action like friction or abrasion. These mechanisms often work together, corroded surfaces can break loose and become abrasive particles that accelerate wear.

Detection and signs: Watch for discoloration, rust layers, pitting, thinning walls, dimensional changes, unusual vibration, or metallic debris in lubricants. Regular inspections using ultrasonic thickness gauging and oil analysis help catch these issues early to prevent future incidents.

Example: A pipeline developing internal pitting that eventually leads to a leak, or a pump impeller eroded by abrasive particles in a slurry.

Fracture and deformation

Definition and causes: You'll encounter two main types of fractures: brittle (sudden breakage with little deformation) or ductile (significant deformation before separation). Deformation occurs when components permanently bend or distort without completely breaking.

Brittle vs. ductile characteristics: Brittle fractures show clean, often crystalline-looking surfaces with little deformation, while ductile failures exhibit stretching, necking, or bending with fibrous or torn fracture surfaces.

Identification: Brittle fractures often display grainy textures with chevron patterns pointing to the origin. Ductile fractures typically show a "cup and cone" shape or significant shear lips.

Example: A hardened steel shaft that snaps without bending when overloaded (brittle), or a crane hook that slowly bends open before eventually breaking (ductile).

Overload and material defects

Overload failures: These occur when your components face stresses beyond their designed capacity. Causes include using the wrong material, unexpected high loads, or operator error. Fracture surfaces typically show single-event patterns rather than progressive damage.

Material defects: Internal voids, inclusions, improper heat treatment, or welding flaws can significantly weaken components, causing failure under normal conditions. The fracture typically initiates at the defect location.

Example: A lifting eye that breaks during an overload, or a gear tooth that fractures at a forging void despite normal loading conditions.

Methods for conducting mechanical failure analysis

When failures occur in your facility, a systematic approach helps you uncover true root causes. Your investigation should progress from simple inspections to more sophisticated testing as needed.

Visual inspection techniques

Always start with careful visual examination of the failed part and the surrounding area:

• Observe the component in place before disturbing the failure site.
• Document everything with photographs from multiple angles.
• Use magnification, good lighting, and measurement tools to identify subtle details.
• Look specifically for fracture surfaces, crack origins, signs of rubbing, heat discoloration, corrosion, and foreign debris.

Experienced analysts can often recognize failure patterns visually, like the distinctive beach marks of fatigue or the 45-degree shear lips of ductile failure. This initial assessment guides your next investigative steps.

Non-destructive testing (NDT) methods

NDT techniques examine components without causing further damage:

• Ultrasonic testing (UT): Sends sound waves into materials to detect internal cracks or measure thickness
• Radiographic testing: Uses X-rays or gamma rays to reveal internal defects as density variations on film
• Magnetic particle inspection (MPI): Identifies surface and near-surface cracks in ferromagnetic materials
• Dye penetrant inspection (DPI): Reveals surface cracks on any non-porous material using colored dyes
• Eddy current testing: Detects surface flaws in conductive materials using induced electrical currents

These methods help you assess component conditions without sacrificing their integrity, which is crucial for both analysis and potential repair.

Root cause analysis tools

Looking beyond the physical failure to the underlying causes requires your team to use structured problem-solving:

• Failure modes and effects analysis (FMEA): You can use this systematic approach that identifies potential failure modes, their effects, and causes. Rate each failure mode by severity, occurrence likelihood, and detection capability to prioritize preventive actions.
• 5 whys analysis: Start with your problem statement and repeatedly ask "why" to peel back layers of cause and effect until reaching the root cause. For example:

  1. Why did the bearing fail? Because it overheated.
  2. Why did it overheat? Lack of lubrication.
  3. Why wasn't it lubricated? The grease fitting was blocked.
  4. Why was it blocked? Debris accumulated during operation.
  5. Why did debris accumulate? No protective cover was installed.
• Other tools: Fishbone (Ishikawa) diagrams and fault tree analysis (FTA) can also help organize potential causes and their interrelationships.

Metallurgical and laboratory analysis

For your critical failures, laboratory testing provides definitive evidence:

• Optical microscopy: Examines polished cross-sections to reveal material structure, heat treatment condition, and defects
• Scanning electron microscopy (SEM): Produces detailed topographical images of fracture surfaces, showing fatigue striations or dimple patterns that confirm failure mechanisms
• Chemical analysis: Verifies material composition to check if the correct alloy was used
• Mechanical property testing: Measures hardness, strength, and toughness to verify material specifications through stress analysis

Laboratory analysis often provides the "smoking gun" evidence needed to conclusively identify the initial failure cause and root causes, especially for complex or disputed failures.

How to prevent mechanical failures: best practices

While analysis helps you understand past failures, implementing preventive measures helps you significantly reduce failures.

Implement preventive maintenance programs

Implementing an effective preventive maintenance program requires these key actions:

• Follow manufacturer maintenance guidelines for service intervals.
• Create and stick to a consistent schedule using a maintenance calendar or CMMS.
• Prioritize critical equipment based on failure consequences and production impact.
• Develop detailed checklists for each maintenance task to ensure thoroughness.
• Track results and adjust intervals based on equipment condition findings.

Well-implemented preventive maintenance dramatically reduces unplanned downtime. It's always cheaper to replace a worn bearing during scheduled maintenance than to deal with a seized bearing that shuts down production.

Monitor asset conditions and performance

Condition monitoring helps you catch developing problems between scheduled maintenance:

• Vibration analysis: Detects imbalance, misalignment, bearing wear, or developing cracks in your rotating equipment
• Thermography: Identifies overheating components that may indicate excessive friction or electrical resistance
• Oil and lubricant analysis: Detects wear particles and contamination that signal internal problems
• Ultrasonic/acoustic monitoring: Helps you hear high-frequency sounds from leaks, arcing, or failing bearings
• Performance metrics: Tracks operational parameters like pressure, flow, and energy consumption to spot declining efficiency

This data-driven approach moves you toward a predictive maintenance approach, fixing components when condition indicators show impending failure rather than on a fixed schedule or after breakdown.

Train staff on early failure warning signs

Your team's observations are often the first line of defense:

• Train your operators and technicians to recognize abnormal sounds, vibrations, heat, leaks, smells, and performance changes.
• Implement daily equipment condition checks using standardized checklists.
• Create clear reporting procedures and encourage immediate communication of potential problems.
• Reinforce that early reporting prevents major failures and is always welcome.
• Provide regular refresher training, especially for new employees.

A well-trained team that knows what to look for can catch developing issues before they become catastrophic failures.

Use data to predict and mitigate risks

Leverage your maintenance history and condition data to make informed decisions:

• Track failure history and calculate mean time between failures (MTBF) for each asset.
• Analyze condition monitoring trends to forecast when parameters will reach critical levels.
• Integrate with IIoT sensors to collect real-time equipment health data.
• Use FMEA results to prioritize your maintenance resources based on risk.

Data-driven maintenance transitions your team from reactive to proactive, allowing you to anticipate and prevent failures rather than simply responding to them.

How digital tools improve failure prevention

Modern maintenance management software streamlines failure prevention and helps ensure nothing falls through the cracks.

Real-time work order tracking and resolution

Digital work order systems can transform your maintenance coordination:

• Centralize all of your maintenance tasks in one accessible system.
• Set priorities and create automated alerts for urgent issues.
• Track progress in real-time with mobile updates from your team in the field.
• Attach documentation, procedures, and equipment history to work orders.
• Streamline workflows with automatic assignments and required sign-offs.

Digitizing your work orders ensures that you address urgent problems promptly and don’t skip routine tasks, both critical for preventing unexpected failures.

Proactive asset management through CMMS

Beyond individual work orders, digital tools support comprehensive asset care:

• Automatically generate and schedule your preventive maintenance tasks.
• Build detailed equipment histories that reveal failure patterns at your facility.
• Manage spare parts inventory to ensure critical components are available.
• Plan resources and labor to cover all of your maintenance needs efficiently.
• Document compliance with regulatory requirements.
• Track lifecycle costs to inform your repair/replace decisions.

A computerized maintenance management system (CMMS) serves as your equipment maintenance command center, orchestrating preventive activities across your entire operation to maximize equipment reliability.

Data-driven insights for maintenance optimization

Digital platforms transform raw data into actionable intelligence:

• Create dashboards showing key metrics like downtime, work order status, and recurring issues.
• Identify failure patterns across equipment, seasons, or operating conditions.
• Compare preventive vs. reactive work ratios to assess program effectiveness.
• Set targets and measure improvement progress over time.
• Integrate with production and financial systems for comprehensive analysis.
• Implement predictive modules that warn of potential failures in advance.

Platforms like MaintainX provide real-time visibility and detailed reports that support data-driven decision making. This intelligence helps maintenance teams continuously refine their strategies so they’re targeting the right problems at the right time with the right resources.

Strengthen your approach to mechanical failure analysis

Effective failure analysis isn't optional. It’s essential for controlling your costs and maintaining reliable operations. Every failure you prevent saves time, money, and prevents safety incidents.

To strengthen your approach, investigate all failures systematically, build cross-functional teams, invest in training, embrace digital tools, and practice continuous improvement.

By combining technical knowledge with digital tools, your team can excel at finding and fixing problems before they escalate. This gives your organization a competitive edge through higher equipment availability, lower maintenance costs, and a reputation for reliability.
