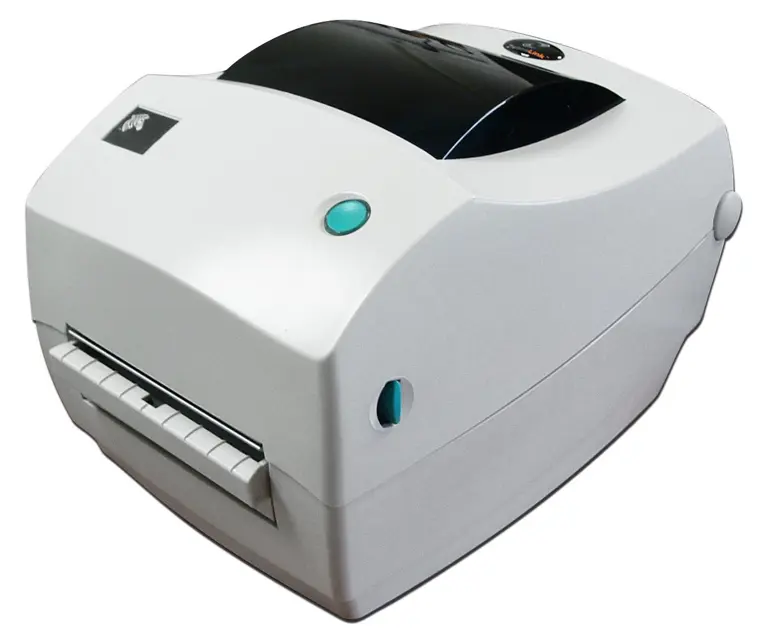

Zebra Printer LP2844

In the event you need to replace the print head, read the procedure and review the removal and installation steps before actually replacing the print head.

Prepare your work area by protecting against static discharge. Your work area must be static-safe and include a properly grounded conductive cushioned mat to hold the printer and a conductive wrist strap for yourself.

NOTE: Turn the printer power off and unplug the power cord before replacing the print head.

Before following the steps in this procedure, open the printer by pulling the release latches forward then lifting the top cover.

1. Use a #1 Phillips driver to loosen the four screws that hold the latch frame to the top case.

2. Grasp the print head spring and pull it to the left; then, slide it free of the latch frame.

3. Gently pull the wire bundles from the print head.

Warning: Ensure to wear gloves and safety glasses before starting the cleaning process.

Area wiped with cleaning swab or pen

Cleaning swab or pen discarded after use

Sign off on the media path cleaning

Warning: Avoid scrubbing or vigorously rubbing the platen; otherwise, the surface could be damaged.

Printer opened and labels removed

Cleaning card placed into the label path under the guides and it extends between the print head and platen roller

With the power switch on, feed switch pressed to move the cleaning card through the printer

Open the printer and remove any media.

1. Using a pointed stylus (such as tweezers, small slot-head screwdriver, or razor-knife), unhook the tabs on the right and left sides. Then rotate them forward.

2. Lift the platen out of the printer’s bottom frame.

Make sure the right bearing is on the shaft of the platen.

1. Align the platen with the gear to the left and lower it into the printer’s bottom frame.

2. Rotate the tabs back and snap them into place.

Warning: This procedure requires trained personnel with PPE!

Is the platen roller manually rotated?

Is the platen roller cleaned with 70% isopropyl alcohol and a cleaning swab, cleaning card, or lint-free cloth?

Is the non-stick platen roller on linerless media printers cleaned frequently?

Is a new platen available as a spare and installed whenever the printer has significantly poorer performance, print quality or media handling?

Is the platen cleaned with a fiber-free swab (such as a Texpad swab) or a lint free, clean, damp cloth very lightly moistened with medical grade alcohol (70% pure or better)?

Is the media door opened and the media removed?

Is the platen surface cleaned with the alcohol moistened swab?

Is the platen rotated while swabbing?
