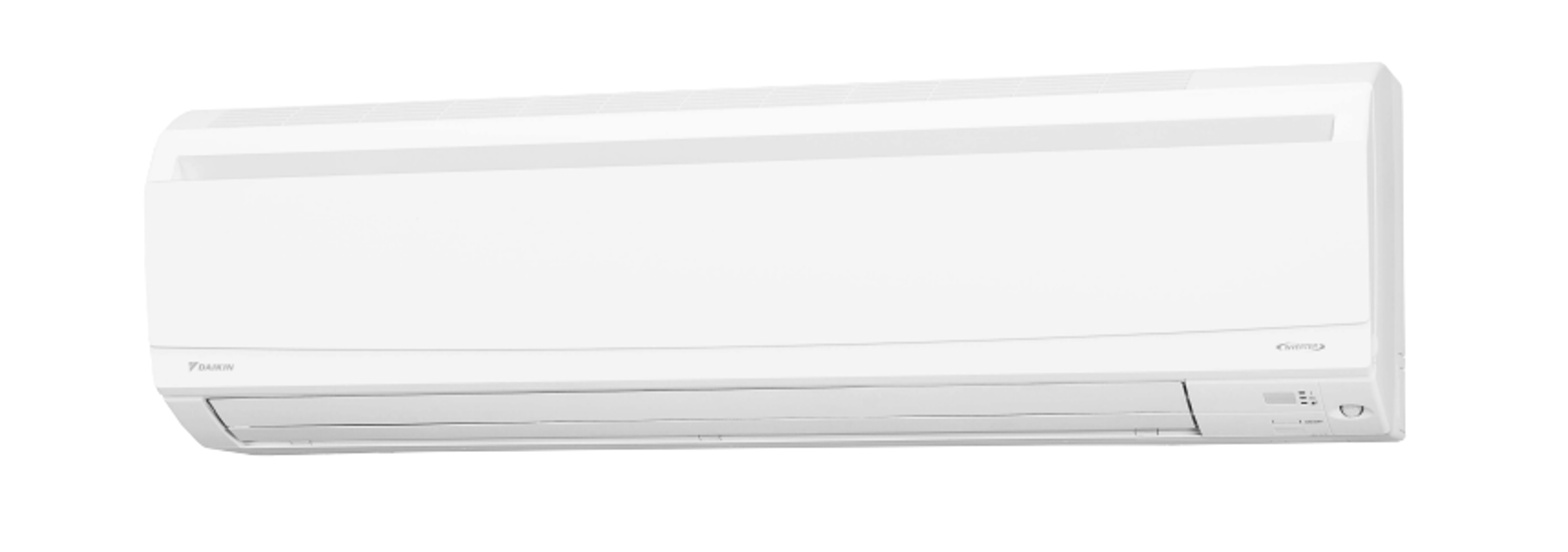

Daikin Indoor Unit Cooling Only Air Conditioner FTKS71HVM

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS71HVM

Integrate maintenance plans directly into your work orders in MaintainX.

Vertical Blade ASSY Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Unfasten the 2 hooks of each vertical blade ASSY.

Remove the 3 vertical blade ASSYs.

When reassembling, connect the 3 vertical blade ASSYs. Fasten the hooks at the connecting points.

Each vertical blade ASSY is united with a drain pan ASSY.

Sign off on the Vertical Blade ASSY Removal

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw

Remove the drip proof plate from the indoor heat exchanger

Remove the screw and release the earth/ground wire

Pull out the indoor heat exchanger thermistor

Remove the screw, and then the wire fixture

Remove the 4 screws on the terminal strip and disconnect the connecting wire

Disconnect the connector [S1] and release the harness from the hook

Release the ferrite core

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the signal receiver PCB.

1) Unfasten the 2 hooks of the shield plate.

2) Open the shield plate and remove it.

The shield plate has 2 hooks at the lower part.

3) Remove the screw, and then the terminal strip.

4) Cut the clamp.

5) Release the harness from the 2 hooks.

When reassembling, make sure to insert the harness into the hook.

Run this procedure

Indoor Heat Exchanger Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

In pump-down work, be sure to stop the compressor before disconnecting the refrigerant pipe. If the refrigerant pipe is disconnected with the compressor operating and the stop valve open, air may be sucked in and may generate an over-pressure in refrigeration cycle, thus resulting in pipe rupture or accidental injury.

When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or wrap the indoor heat exchanger with cloths. (You may be injured by the fins.)

Caution: Be sure to conduct pump down operation before disassembling the refrigerant pipe.

If the refrigerant leaks, repair the spot of leaking, then collect all refrigerant from the unit. After conducting vacuum drying, recharge proper amount of refrigerant.

From the viewpoint of global environmental protection, make sure to use a vacuum pump for air purging.

Pull out and disconnect the drain hose.

Wrap the open ends of the drain hose with plastic sheets to prevent water dripping.

Unscrew the flare nuts for gas piping and liquid piping.

Run this procedure

Front Grille Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Service cover removed

Number of screws removed from the service cover

Front grille removed

Number of screws removed from the front grille

Number of screw covers removed with a flat screwdriver
