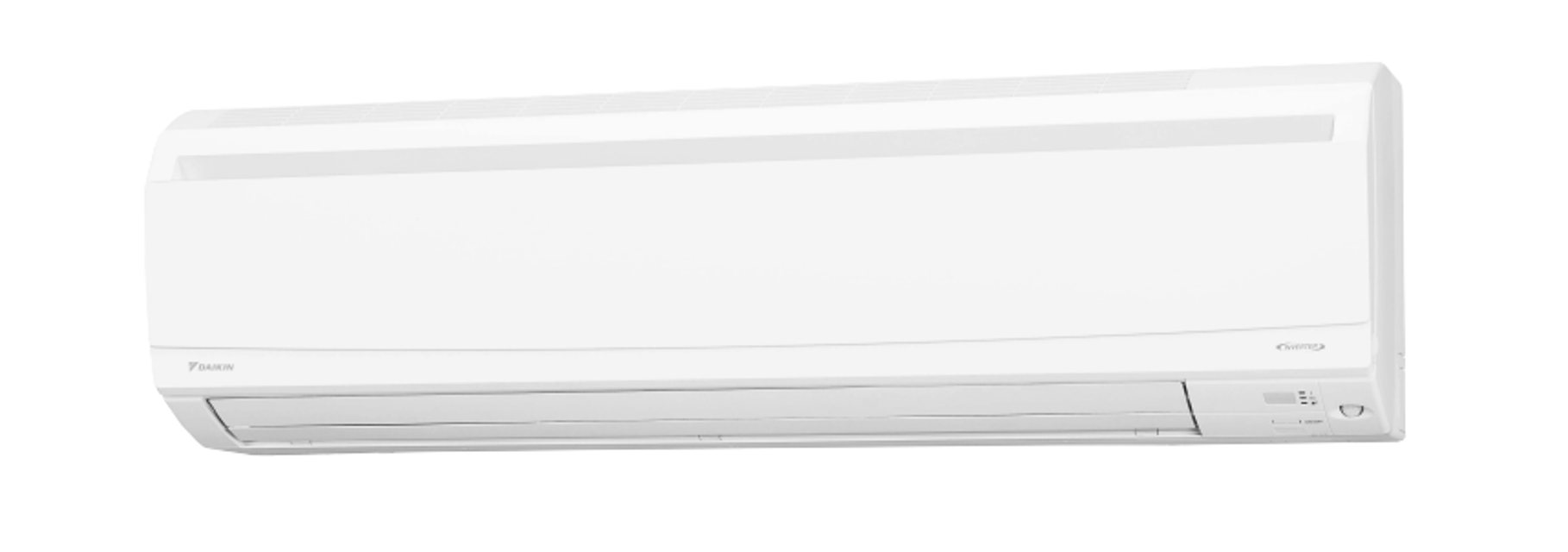

Daikin Indoor Unit Cooling Only Air Conditioner FTKS85JVMG

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the horizontal blades.

1) Release the right shaft of the horizontal blade (large).

3) Release the inner right shaft.

4) Release the inner left shaft.

5) Remove the horizontal blade (large).

6) Remove the horizontal blade (small) in the same way.

2. Remove the air outlet ASSYs.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

You can remove the front grille without removing the service cover.

1) Remove the screw, and then the service cover.

1) Remove the 3 screws of the front grille.

2) Remove the 3 screw covers with a flat screwdriver.

4) Remove the 3 front grille fixtures.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Loosen the screw of the fan motor from the air outlet.

Remove the screw of the fan motor fixing plate (upper).

Unfasten the hook at the front and remove the fan motor fixing plate (upper).

Release the harness from the hook, and remove the screw of the fan motor fixing plate (lower).

Remove the fan motor fixing plate (lower).

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

Insert the fan motor allowing for approx. 5 mm (0.2 inch) of play.

Tighten the fan rotor screw until it stops. Then give the screw one more turn.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Caution: When reassembling, do not confuse the installing order of the 2 motors for horizontal blades and the colors of the connectors.

If you set the connectors or motors opposite, the horizontal blades do not move smoothly or noise may be heard

1. Remove the swing motors for horizontal blades.

1) Hold the indoor unit up with a piece of wood.

2) Remove the screw at the rear of the indoor unit.

5) Remove the swing motor unit.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the signal receiver PCB.

1) Unfasten the 2 hooks of the shield plate.

2) Open the shield plate and remove it.

The shield plate has 2 hooks at the lower part.

3) Remove the screw, and then the terminal strip.

5) Release the harness from the 2 hooks.

When reassembling, make sure to insert the harness into the hook.
