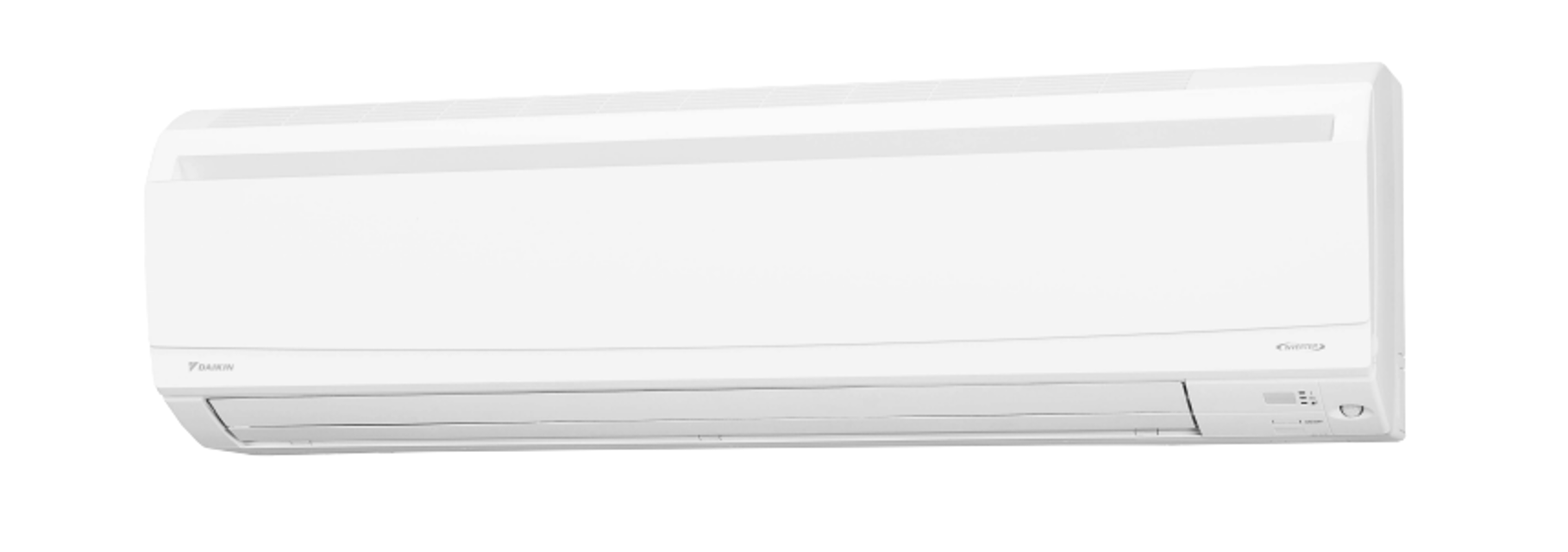

Daikin Indoor Unit Cooling Only Air Conditioner FTKS60MVLT

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS60MVLT

Integrate maintenance plans directly into your work orders in MaintainX.

Horizontal Blade Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the horizontal blades.

1) Release the right shaft of the horizontal blade (large).

2) Release the left shaft.

3) Release the inner right shaft.

4) Release the inner left shaft.

5) Remove the horizontal blade (large).

6) Remove the horizontal blade (small) in the same way.

2. Remove the air outlet ASSYs.

Run this procedure

Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Loosen the screw of the fan motor from the air outlet.

Remove the screw of the fan motor fixing plate (upper).

Unfasten the hook at the front and remove the fan motor fixing plate (upper).

Release the harness from the hook, and remove the screw of the fan motor fixing plate (lower).

Remove the fan motor fixing plate (lower).

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

Insert the fan motor allowing for approx. 5 mm (0.2 inch) of play.

Tighten the fan rotor screw until it stops. Then give the screw one more turn.

Run this procedure

Vertical Blade ASSY Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Unfasten the 2 hooks of each vertical blade ASSY

Remove the 3 vertical blade ASSYs

When reassembling, connect the 3 vertical blade ASSYs. Fasten the hooks at the connecting points.

Each vertical blade ASSY is united with a drain pan ASSY

Sign off on the Vertical Blade ASSY Removal

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the signal receiver PCB.

1) Unfasten the 2 hooks of the shield plate.

2) Open the shield plate and remove it.

The shield plate has 2 hooks at the lower part.

3) Remove the screw, and then the terminal strip.

4) Cut the clamp.

5) Release the harness from the 2 hooks.

When reassembling, make sure to insert the harness into the hook.

Run this procedure

Fan Motor / Fan Rotor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Removed the 2 screws and the right side plate

Removed the screw of the fan motor fixing plate (upper)

Removed the fan motor fixing plate (upper)

Loosened the screw of the fan rotor

Removed the fan motor

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

Inserted the fan motor allowing for approx. 5 mm (0.2 inch) of play

Tightened the fan rotor screw until it stops. Then gave the screw one more turn

Run this procedure
