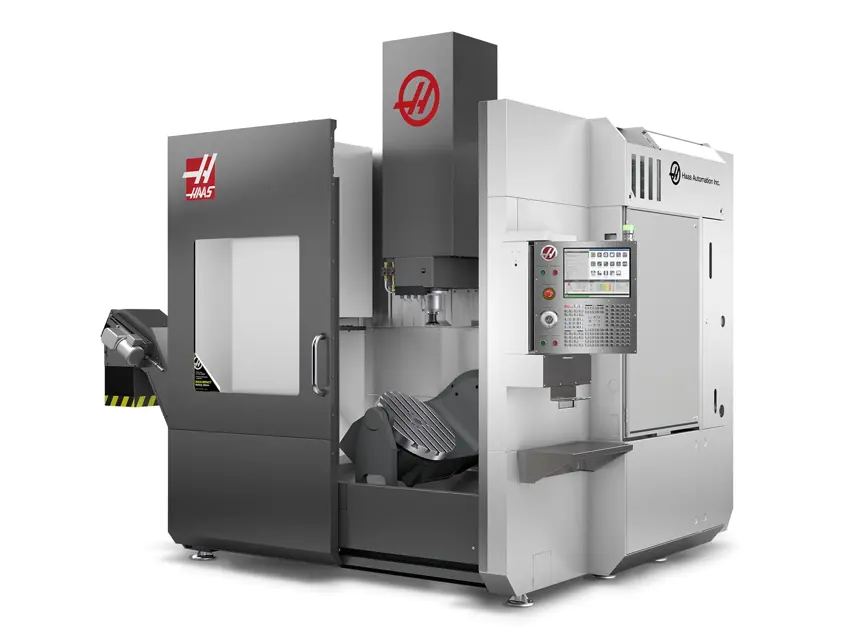

Haas Automation Vertical Machining Center UMC-750
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Haas Automation Vertical Machining Center UMC-750
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Haas Automation Vertical Machining Center UMC-750
Create an account to install this asset package.
Maintenance Plans for Haas Automation Vertical Machining Center Model UMC-750
Integrate maintenance plans directly into your work orders in MaintainX.
Vertical Machining Center Maintenance
Auxiliary Filter: Replace the filter bag
Check the Gauge
Standard Flood Coolant System: Clean the filter screen
Spindle: Clean and lubricate the spindle taper
Tooling: Grease the pull studs
Sign off on the maintenance procedure
1 Daily Vertical Machining Center Enclosure Inspection
Enclosure
Inspect windows for damage
Inspect the door interlock operation
2 Yearly Rotary Axes Replacement
1) Rotary Axes:
- Replace the oil.
- Replace the A-Axis counterbalance cylinder.;
1 Weekly Vertical Machining Center Maintenance
1) Automatic Tool Changer - SMTC: Clean the chips from the tool changer.
2) Pneumatics: Inspect the spindle air regulator pressure.
3) Standard Flood Coolant System:
- Inspect the coolant level.
- Inspect the coolant concentration.;
1 Monthly Vertical Machining Center Maintenance
Axis Lubrication: Inspect grease reservoir level.
Electrical Cabinet: Clean vector drive air vents / filter.
Enclosure: Inspect way covers and lubricate.
Spindle Lubrication: Inspect lubrication tank level.
Sign off on the monthly maintenance
