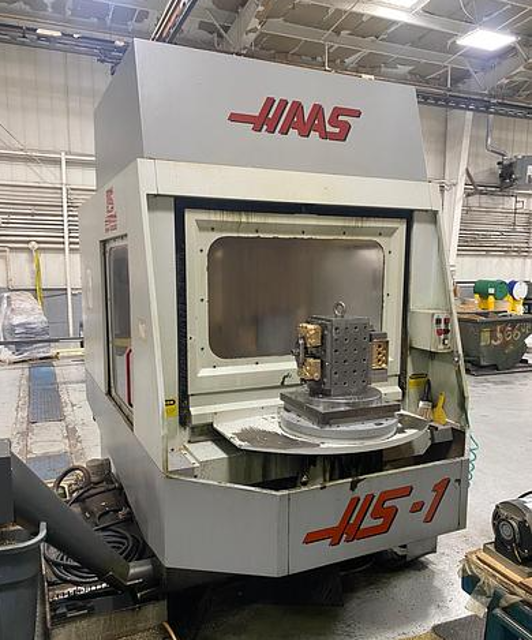

Haas Automation CNC Horizontal Machining Center HS-1RP

Sign off on the filter cleaning

Place a dab of grease on the V-flange of tools.

Clean the chip basket on the coolant tank.

Remove the tank cover and remove any sediment inside the tank.

Be careful to disconnect the coolant pump from the controller and POWER OFF the control before working on the coolant tank.

Inspect way covers for proper operation and lubricate with light oil, if necessary.

Place a dab of grease on the outside edge of the guide rails of the tool changer and run through all tools.

Check oil level in the Drawbar tank, located on top of the bridge under the sheetmetal cover.

Clean the air filter and front condeser fins of the spindle head cooler.

Check oil filter and clean out residue at bottom of filter

Change spindle head cooler fluid (95% deionized water with 5% light oil - hydraulic oil, Mobile DTE 24, 25 or equivalent)

Replace air filter on control box every (2) years

Sign off on the CNC Horizontal Machining Center Maintenance

Check automatic dump air line's water trap for proper operation

Check air gauge/regulator for 85 psi

Clean exterior surfaces with mild cleaner. DO NOT use solvents

Check the hydraulic counterbalance pressure according to the machine's specifications

Check the coolant level of the spindle head cooler (95% deionized water with 5% light oil - hydraulic oil, Mobile DTE 24, 25 or equivalent)

Sign off on the weekly maintenance

Warning: This maintenance check requires trained personnel with PPE!

Way lube lubrication tank level reading

Way covers and bottom pan cleaned from chips?

Tool changer cleaned from chips?

Spindle taper wiped with a clean cloth rag and light oil applied?
